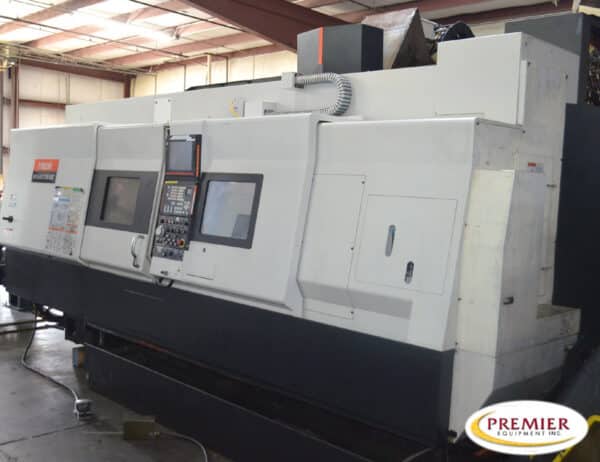

Mazak Integrex 300-3ST – 2005

2005 Mazak Integrex 300-3ST x 60”
CNC Multi-Axis Turning Center
Specifications (subject to buyer verification):
Maximum Swing……………………… 33.5″
Maximum Swing using Y-axis………….. 26″-33.5″
Maximum Swing over Cross Slide………. 33.5″
Maximum Swing over Lower Turret……… 16.5″
NOTE: Without boring bar holder on turret.
Maximum Cutting Diameter: Chucking…… 30″ (Upper)
Maximum Cutting Diameter: Chucking…… 16.5″ (Lower)
Maximum Cutting Length……………… 60″
Maximum Distance Between Chuck Faces…. 60″

MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose………………………. A2-8
Spindle Bore………………………. 3.46″
Maximum Bar Work…. ………………. 3.0″ Dia.
Spindle Speed……………………… 4,000 RPM

Equipped With (subject to buyer verification):
MAZATROL FUSION 640MT PRO CNC
Coolant Thru Milling Head
213 PSI Thru/Flood Coolant (Upper Turret)
1KG Flood Coolant (Lower Turret) 14.2 PSI
C-Axis 0.0001 Degree Incr. (1st Spindle)
2nd Spindle Position 0.001 Deg w/o C-Axis
40 KM Tool Magazine
(2) 10” Kitagawa Chucks
