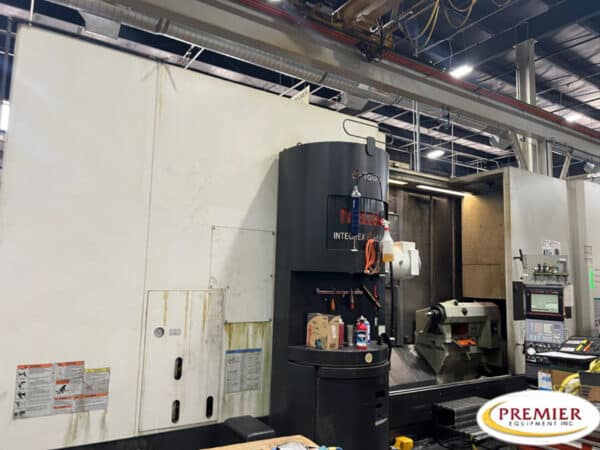

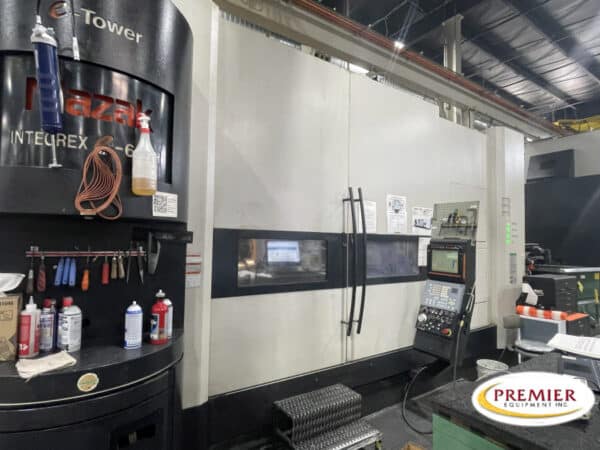

Mazak Integrex e-650H Multi-Axis Heavy-Duty CNC Lathe with Milling
Specifications (subject to buyer verification):
Maximum Swing……………………… 36.2″
Maximum Swing over Carriage…………. 36.2″
Maximum Cutting Diameter: Chucking…… 36.2″
Maximum Cutting Length 80″ Universal…. 80″
MAIN SPINDLE SPECIFICATIONS:
Spindle Nose………………………. A2-11
Spindle Bore………………………. 6.69″
Spindle Speed/Ranges……………….. 1600 RPM / 2
Spindle Index (Programmable)………… 0.0001 Degree
Spindle Horsepower (Cont./30 Mins.)….. 50/60 H.P. (A.C.)
Spindle Torque…………………….. 3,319 ft-lbs
TURRET AND TOOLING SPECIFICATIONS:
Magazine Capacity………………….. 40 Tools
ATC Tool Shank…………………….. CAT 50
ROTARY SPINDLE:
Spindle Speed/Ranges……………….. 10,000 RPM / 1
Spindle Horsepower (30 Min.)………… 50 H.P. (A.C.)
Equipped With (subject to buyer verification):
Mazatrol Fusion 640M Pro Control
21″ Kitagawa B21 Chuck
6.69″ bore diameter
40 tool magazine
80″ machine
chip conveyor
overload detection
auto power on/off warm up
long boring bar stocker
manual steady rest
tool eye
turret air blast
