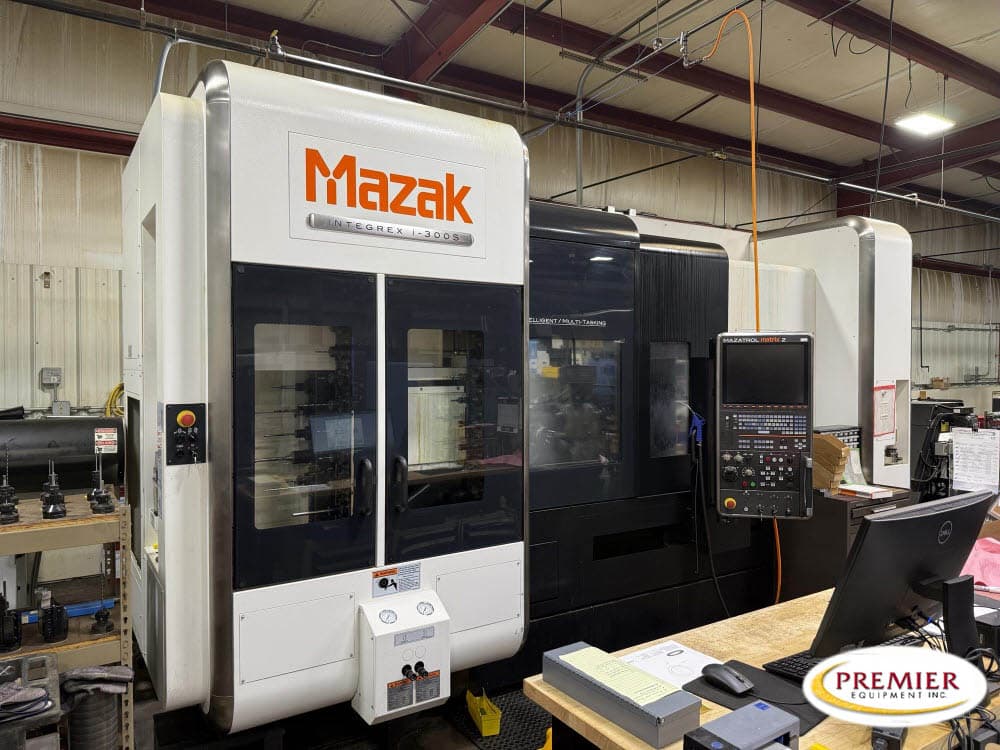

Mazak Integrex i300S x 60” Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
Maximum Swing……………………………. 25.9″
Maximum Swing over Cross Slide………… 25.9″
Maximum Cutting Diameter: Chucking…… 25.9″
Maximum Cutting Length …………………. 59.8″
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Bore…………………………………. 3.58″
Maximum Bar Work………………………….. 3.0″
Spindle Speed………………………….. 35-4,000 RPM
Spindle Horsepower (Cont./30 Mins)…… 30/40 HP (AC)
SECOND SPINDLE SPECIFICATIONS (R):
Spindle Bore…………………………………. 3.58″
Maximum Bar Work…………………………. Optional-depends on current chuck package
Spindle Speed………………………….. 35-4,000 RPM
Spindle Horsepower (Cont./30 Mins)…… 30/35 HP (AC)
TURRET AND TOOLING SPECIFICATIONS:
Magazine Capacity………………….. 72
ATC Tool Shank………………………….. CAPTO
Rotary Tool Spindle Speed…………… 15-12,000 RPM
Equipped With (subject to buyer verification):
Mazatrol Matrix 2 CNC Control
72 Capto-Tool Magazine
Mazak Superflow S8-1000 High Pressure Coolant 1000 PSI/8GPM
Automatic Parts Catcher w/Ejec (3.15” Dia x 5.9” L x 11 lbs)
Chip Conveyor Side Disposal (Hinge Type)
Auto Pecking Cycle with Load Detection
ATS ML3-580S Barfeed
