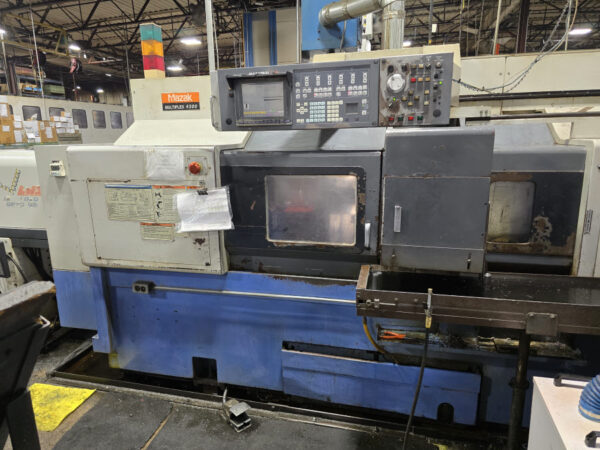

Mazak Multiplex 4300 Twin Spindle, Twin Turret CNC Lathe
Specifications (subject to buyer verification):
Maximum Swing……………………….. 16.93″
Standard Cutting Diameter…………….. 13.0″
Maximum Bar Diameter…………………. 3.0″
MAIN SPINDLE (L&R)
Distance Between Spindle Faces:
Max.(Both Heads @ Home Position)…… 57.07″
Min…………………………….. 9.82″
Spindle Nose………………………… A2-8
Spindle Bore………………………… 3.46″
Spindle Speed/Ranges…………………. 4,000 RPM/1
Spindle Horsepower (30 min.)………….. 30 HP (AC)
Spindle Torque………………………. 441.34 ft.-lbs.
TURRET (L&R)
Type of Turrets……………………… Dodecagonal/Drum
Non-Lift
Tool Holder Shanks…………………… Modified VDI
Turret Index Time (1 Step)……………. 0.3 Sec.
Total Number of Tools
(Rotary Avail./All Positions)…. 24 (12×2)
Tool Size (Turning & Facing)………….. 1″ x 1″
Tool Size (Boring Bar Max. Dia.)………. 2″
AXIS
Travel X-Axis (L&R)………………….. 12.2″
Travel Z-Axis (L&R)………………….. 23.82″
Rapid Traverse: X-Axis………………. 945 IPM
Z-Axis………………. 945 IPM
MACHINE
Machine Floor Space (W x L)
W/O Automation or Bar Feeder, etc….. 95.3″ x 167.7″
Machine Height………………………. 82.68″
Total Power Required (Machine Only)……. 66 KVA
NOTE: Actual Machine Main Transformer
KVA Rating Will be Greater
Air Requirements…………………….. 71 psi / 14 CFM
Total Weight (For Machine Only)……….. 25,600 lbs.
Equipped With (subject to buyer verification):
Mazatrol Fusion 640T Control
LNS Quick Load Barfeed
Tool Eyes
Twin Turret
Twin Spindle
