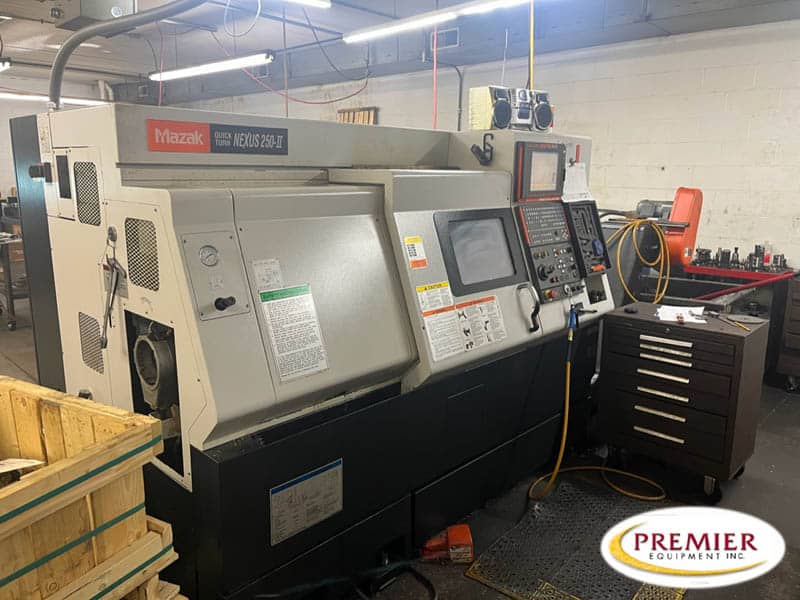

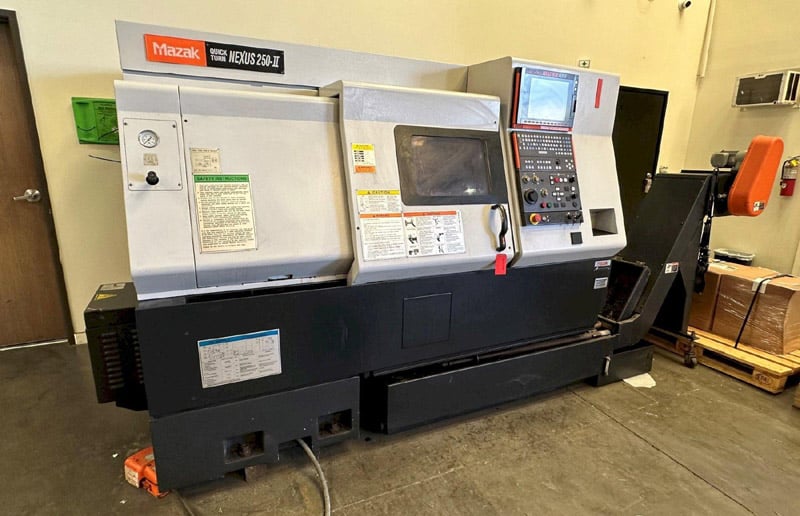

Mazak Quick Turn Nexus 250-II CNC Lathe/ QTN-250 / QTN250
Specifications (subject to buyer verification):
Maximum Swing………………………… 24″
Swing Over Cross Slide………………… 14″
Standard Machining Diameter……………. 10.39″
Maximum Machining Length………………. 18.73″
Spindle Motor………………………… 35 / 30 (30 MIN/CONT.)
Spindle Bore…………………………. 3.46″
Standard Bar Capacity…………………. 3.00″
Spindle Speed………………………… 4,000 RPM
Number of Spindle Speed Ranges…………. 1
Spindle Nose…………………………. A2-8
Turret Type………………………….. DRUM TURRET
Number of Tools………………………. 12
Tool Shank Height…………………….. 1″
Boring Bar Shank Diameter……………… 1.5″
Turret Index Time…………………….. .2 SEC (ONE POSITION)
X-Axis Travel………………………… 7.5″
Z-Axis Travel………………………… 20.25″
Rapid Traverse Rates X-Axis……………. 1181 IPM
Rapid Traverse Rates Z-Axis……………. 1299 IPM
Tailstock Travel……………………… 20.75″
Tailstock Center……………………… MT NO.5
Coolant Tank Capacity…………………. 40 GAL
Machine Height……………………….. 72.4″
Floor Space Requirement……………….. 98.4″ x 70.1″
Weight………………………………. 10,560 LBS.
Specifications (subject to buyer verification):
MAZATROL Matrix Nexus Control
12.1″ Color LCD
USB I/F (2-Port)
LAN Port
User Macro (Common Variables: 600 Pairs)
Sequence Number Comparison Stop Function
Automatic Tool Eye
Tailstock
Chip Conveyor
10” Chuck ??
