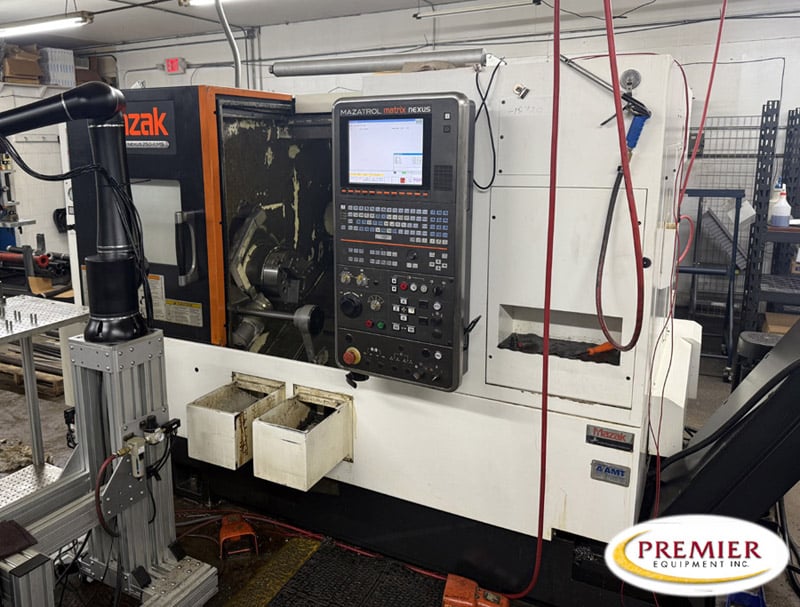

Mazak Quick Turn Nexus 250MS-II / QTN250MS2
Specifications
Main Spindle Chuck 10”
Maximum Swing 26.5″
Maximum Cutting Diameter 14.75″
Maximum Machining Length 10.87″
Max Distance Between Spindles 21.28″
Maximum Bar Size 3″
Main Spindle HP AC 30/35
Main Spindle RPM 5,000 RPM
Main Spindle Nose A2-8
Main Spindle Bore 3.46″
Number of Tool Stations 12
Milling Spindle RPM 4,500 RPM
X Axis Travel 9″
Z Axis Travel 22.625″
Rapid Traverse Rate X 1181 ipm
Rapid Traverse Rate Z 1299 ipm
2nd Spindle Chuck 6”
2nd Spindle Nose A2-6
2nd Spindle HP 10 HP
2nd Spindle RPM6000 RPM
Equipped With:
Mazatrol Matrix Nexus 2
Chip Conveyor
Parts Catcher
Barfeed
