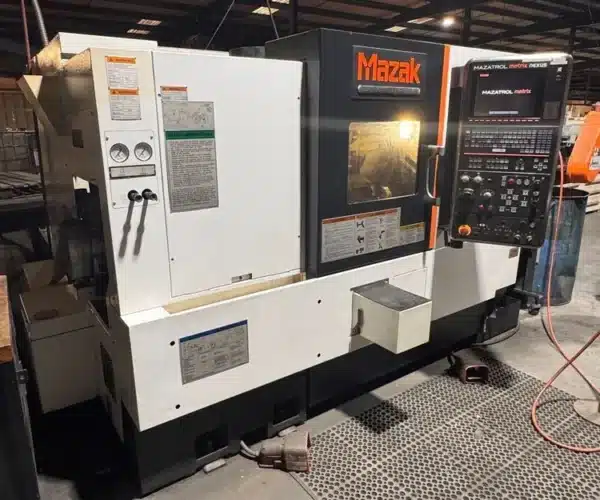

MAZAK QUICK TURN NEXUS 250-II MSY / QTN250MSY / QTN-250MSY
SPECIFICATIONS:
Swing: 26.4″
Turning Diameter:14.75″
Center Distance:21.28″
Bar Capacity3″
X Axis Travel9″
Z Axis Travel22.75″
Y Axis Travel4″
W Axis Travel23″
C Axis Index0.001°
Rapid Traverse (X/Z/W/Y): 1,181/1,181/1,181/826 ipm
Spindle Speed (RPM) 4,000 rpm
Main Motor 35 hp
Turret Capacity12 + 12
Live Toolingyes
Live Tooling Speed 4,500 rpm
Live Tooling Motor7.5 hp
Sub Spindleyes
Sub Spindle Chuck6″
Sub Spindle Speed6,000 RPM
Sub Spindle Motor (HP)7.5 hp
Y Axisyes
Dimensions 117″ x 73″ x 73″
Weight 12,000 pounds
Equipped with:
Mazatrol Matrix Nexus CNC Control
Sub Spindle
Live Tooling
Y Axis
Conversational Programming
Chip Conveyor
