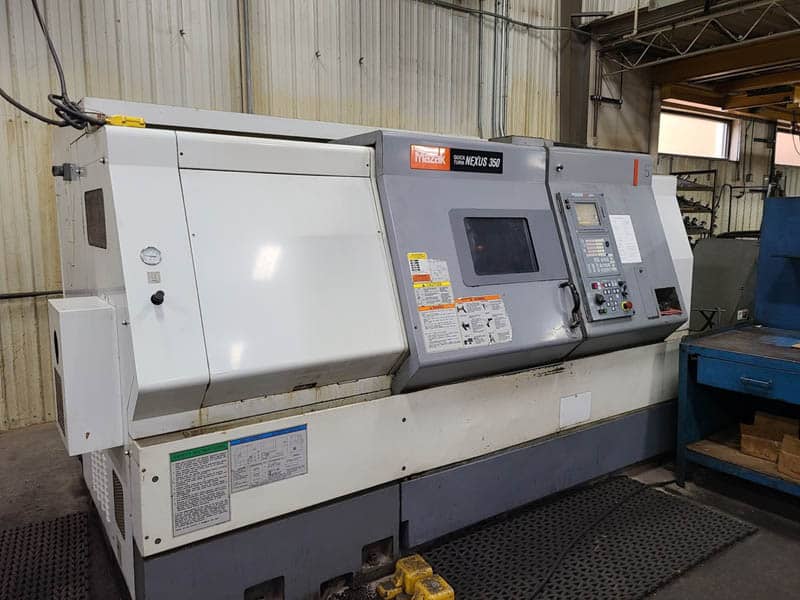

Mazak Quick Turn Nexus 350 CNC Turning Center / QTN350 / QTN-350
Specifications
Main Spindle Chuck 12″
Maximum Swing 26.77″
Maximum Cutting Diameter 16.53″
Distance Between Centers 26″
Maximum Bar Size 4″
Main Spindle HP 40/30 HP
Main Spindle RPM 3500 RPM
Main Spindle Nose A2-11
Main Spindle Bore 4.4″
Number of Tool Stations 12
X Axis Travel 8.85″
Z Axis Travel 26.25″
Rapid Traverse Rate X 1181 IPM
Rapid Traverse Rate Z 984 IPM
Tailstock CenterMT #5
Equipped With:
Fusion 640T Nexus
Tailstock
Tool eye
Chip Conveyor
