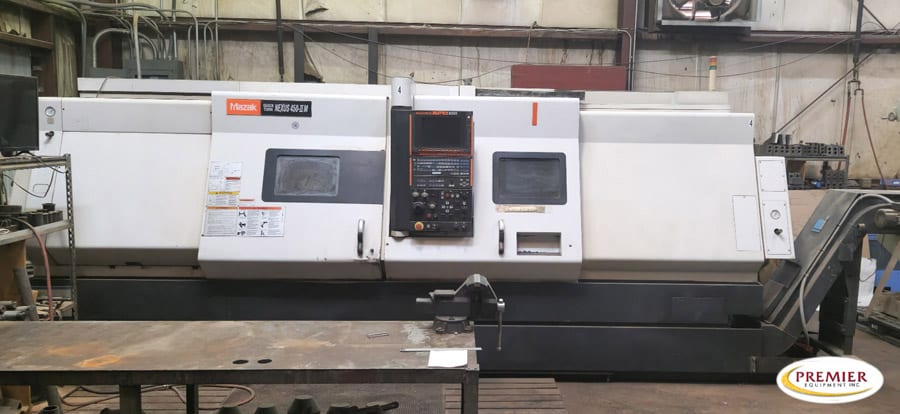

Mazak Nexus 450M-II CNC Turning Center with Milling / QTN450M / QTN-450M / QT Nexus 450M-II
Specifications (subject to buyer verification):
Maximum Swing……………………….33.26″”
Maximum Machining Diameter…22.8″ (ADJACENT STATIONS EMPTY)
Spindle Motor (30 min)……………….40 HP
Spindle Torque………………………1363 ft/lbs
Spindle Bore………………………..6.5″(165mm)
Spindle Speed……………………….2000 RPM
Spindle Nose………………………..A2-15
Number of Tools……………………..12
Standard Mill Spindle Speed…………..4000 RPM
Mill Spindle Power…………………..10 HP
X-Axis Travel……………………….13.3″
Z-AXIS TRAVEL / BED LENGTH:…………..80″ 83.46″
Equipped With (subject to buyer verification):
Mazatrol Matrix Nexus Control
Milling-Spindle Synchronous Tapping
C-Axis 0.0001 Degree Incr.
Programmable Tailstock
All Available Tooling
SMW Autoblock BBN460/181ES 3-Jaw Self Contained Air Chuck
