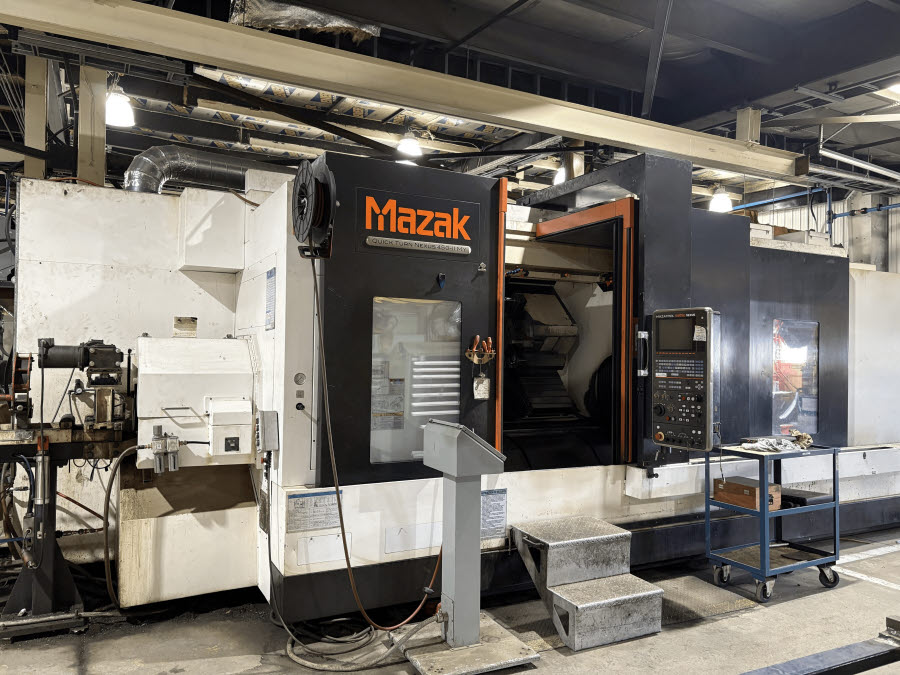

Mazak QT Nexus 450MY-II Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
Maximum Swing………………………………………. 33.07”
Standard Machining Diameter …………………………… 13.23”
Maximum Machining Diameter …………………..…….. 22.84”
Bar Workpiece Capacity………………………………………. 7.24”
Spindle Motor (30 min/Cont)..…………………………….. 50/40 HP
Spindle Torque……………………………………………………. 1,748.7 FT/LBS
Spindle Speed……………………………………………………… 2,000 RPM
Spindle Nose……………………………………………………….. A2-15
Spindle Through-hole Diameter…………………………… 7.28”
Turret Number of Tools……………………………………….. 12
Tool Size Milling (Drill/End Mill/Tap)………….. CAT40 / CAT40 / 1-8 UNC
Feed Axes:
X-axis (Travel/Rapid Reverse…………………………….. 13.39” / 1,181 IPM
Z-axis (Travel/Rapid Reverse) .………………..……. 125” /945 IPM
Y-axis (Travel/Rapid Reverse)..…………………………. 8” / 591 IPM
Equipped With (subject to buyer verification):
Mazatrol Matrix Nexus Control
120”cc
