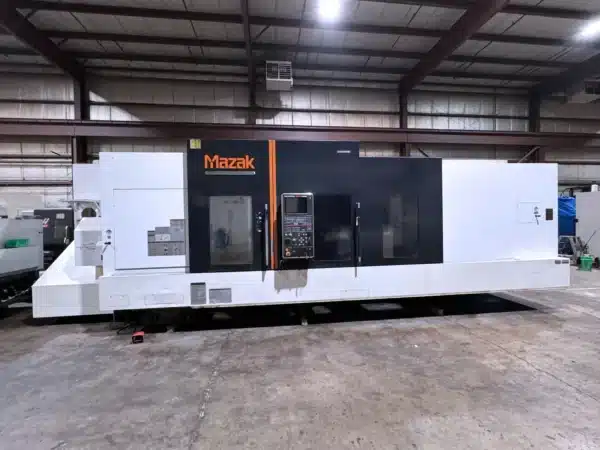

Mazak QT Nexus 450MY / QTN450MY Multi-Axis CNC Turning Center / QTN-450MY
MAZAK QT Nexus 450 MY / 3000
SPECIFICATIONS
DISTANCE BETWEEN CENTERS 125”
CHUCK SIZE 17.5” Hydraulic
TOOL CAPACITY: 12
MAX SWING 33.07″
MAX MACHINING DIAMETER 22.83″
MAX MACHINING LENGTH 120″
MAIN SPINDLE MAXIMUM SPEED: 2,000 RPM
MAIN SPINDLE MOTOR 50 HP
X-AXIS TRAVEL 13.37″
Y-AXIS TRAVEL 8″
Z-AXIS TRAVEL 123″
C-AXIS 0.001 deg
W-AXIS TRAVEL 116.14″
THRU HOLE SIZE 4.5”
MAX SPEED OF DRIVEN TOOLS 4,000 RPM
IS THERE A HYDRAULIC STEADY REST? YES
HOW MANY LIVE TOOLS ARE WITH THE MACHINE? 6 live tools
Option / equipped with
Mazatrol Matrix 2 Control
Hydraulic Steady Rest
6 Live Tools
17.5” Hydraulic Chuck with 4.5” Spindle bore
Hydraulic Tailstock
All specifications and accessories are assumed to be correct but must
