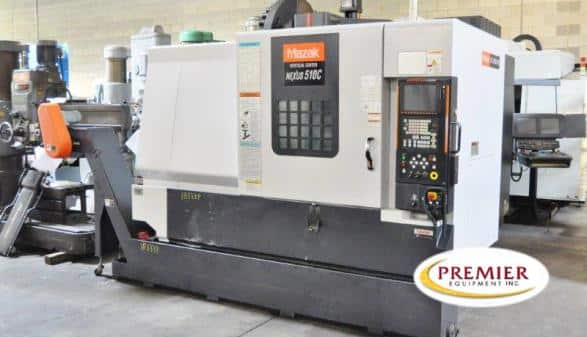

Mazak Nexus 510C CNC Mill / VCN510C / VCN-510C
Specifications (subject to buyer verification):
TABLE SIZE 51.2” X 21.6”
X-AXIS STROKE 41.3”
Y-AXIS STROKE 20.0”
Z-AXIS STROKE 20.0”
SPINDLE FACE TO TABLE SURFACE 26.0”
COLUMN FACE TO SPINDLE CENTER 22.6”
MAXIMUM TABLE WEIGHT CAPACITY 2,646 LBS
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR (5MIN/10MIN/CONT.) 25/20/10 HP
SPINDLE TAPER #40
RAPID TRAVERSE (X,Y,Z) 1417.3 IPM
NUMBER OF TOOLS 30
Equipped With (subject to buyer verification):
MAZATROL PC-Fusion-CNC 640M Nexus Control
10.4” Color LCD
30 Tool Magazine
25HP / 5 Min.
12,000 RPM Spindle Speed
Hi-Press. Coolant Thru Spindle @ 213 PSI
Chip Conveyor Left Disp. (Hinge/For Steel)
Auto Tool Length Measur & Break Detect. Renishaw TS27R
Champion EIA/ISO Optional Package
Synchronized Tapping Software
10.4” Color LCD
30 Tool Magazine
25HP / 5 Min.
12,000 RPM Spindle Speed
Hi-Press. Coolant Thru Spindle @ 213 PSI
Chip Conveyor Left Disp. (Hinge/For Steel)
Auto Tool Length Measur & Break Detect. Renishaw TS27R
Champion EIA/ISO Optional Package
Synchronized Tapping Software
