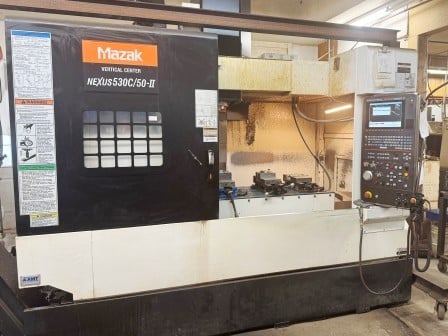

Mazak Nexus 530C/50-II with Rotary Table – 2015

Mazak Nexus 530C/50-II CNC Vertical Machining Center / VCN530C/50 / VCN-530C/50

Specifications (subject to buyer verification):
Table Size……………………………………………………………. 51.1” x 21.6”
X-Axis Stroke………………………………………………………. 41.3”
Y-Axis Stroke………………………………………………………. 20.87”
Z-Axis Stroke………………………………………………………. 23.03”
Spindle Face to Table Surface (Min/Max)…………… 5.91” / 28.94”
Maximum Table Weight Capacity……………………….. 2,646 Lbs.
Spindle Speed…………………………………………………….. 6,000 RPM
Spindle Motor (30 Min/Cont.)…………………………….. 30 / 25 HP
Spindle Taper……………………………………………………… CAT-50
Equipped With (subject to buyer verification):
Mazatrol Matrix Nexus 2 Control
12.1” Color LCD
USB I/F (2-Port)
LAn Port in Electrical Cabinet
Tool Life Monitoring
Chip Conveyor
Auto Tool Length Measurement
Rotary Table
TSC
