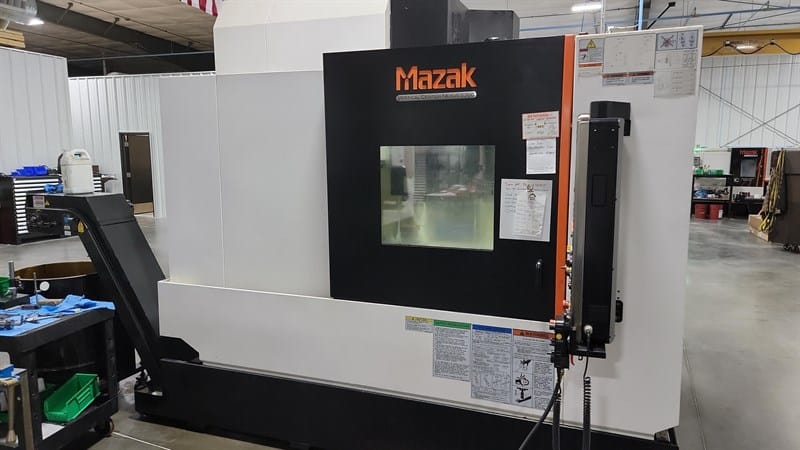

Mazak Nexus 530C-II – 2016

MAZAK NEXUS VCN 530CII CNC 4TH AXIS VERTICAL MACHINING CENTER
Specs
Table Size 51.18” X 21.65”
Table Load Capacity 2630 LBS.
Spindle Nose To Table Top 5.90” – 25.98”
X – Axis Travel 41.3″
Y – Axis Travel 20.87″
Z – Axis Travel 20.07″
Spindle Nose CAT #40
Spindle Speed 12,000 RPM
Main Motor 25 HP
Rapid Traverse Rate, X, Y, Z 1417, 1417, 1417 IPM
Tool Magazine 30 ATC
Max Tool Dia. 4.920”
Maximum Tool Weight 17.64 LBS.
Max Tool Length 13.78”
Machine Weight 16,600 lbs.
Equipped with
213 PSI THRU SPINDLE COOLANT SYSTEM AUTO ATLM, POLAR COORDINATES INPUT, COMPARISON STOP, G54.1
CHIP CONVEYOR DUAL USB PORTS
EIA EIA HELICAL AND PATTERN CYCLES
EIA/ ISO, AND ADDITIONAL MAZAK MATRIX 2 CNC CONTROL
MR 250 ROTARY 4TH AXIS TABLE WITH 9″ CHUCK MT CONNECT PREP
REMOTE MFG RENISHAW PROBE
RENISHAW TOOL LENGTH MEASUREMENT PROBE ROT AXIS SHAPE COMP., G00 SLOPE CONST.
SHAPE COMP, THREAD, INVERSE TIME SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
SYNC TAPPING TILTED WORK PLANE, AUTO PECKING, PITCH ERROR COMP
TOTAL COVER TRANSFORMER
VARIABLE 600 SETS, CYLINDER
