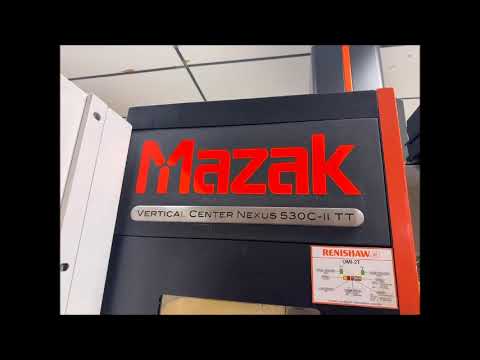

Mazak Nexus 530C-II T-T (Twin Table) CNC Vertical Machining Center / VCN530C / VCN-530C
Specifications:
TT Table Option Sizes…………………………………………………. 51.1” x 21.6” combined or (2) 25.4” x 21.6” Tables
-Each table fits parts up to 24.41” L x 26.65” W x 18.5” H
-Together, the tables fit parts up to 47.24″ L x 26.65″ W x 18.5″ H
X-Axis Stroke………………………………………………………. 41.3”
Y-Axis Stroke………………………………………………………. 20.88”
Z-Axis Stroke………………………………………………………. 20.08”
Spindle Face to Table Surface (Min/Max)…………… 5.91” / 25.98”
Maximum Table Weight Capacity……………………….. 2,646 Lbs.
Spindle Speed…………………………………………………….. 12,000 RPM
Spindle Motor (30 Min/Cont.)…………………………….. 15 / 10.2 HP
Spindle Taper……………………………………………………… CAT-40
Feedrate Rapid Traverse.…………………………………… 1417.3 IPM
Number of Tools………………………………………………… 30
Maximum Tool Diameter…………………………………… 3.15”
Maximum Tool Diameter (Adj. Pockets Empty).…. 4.92”
Maximum Tool Length…………………………….…………. 13.78”
Maximum Tool Weight……………………………….……… 17.64 Lbs
Tool Select Method……………………………………….….. Random, Automatic shortest pass
Tool Change Time (Chip to Chip)………………….……. 2.9 sec (1K RPM) 5.8 sec (12K RPM)
Machine Height…………………………………………..…….. 111.93”
Floor Space…….…………………………………………..……… 117.09” x 111.61”
Machine Weight…………………………………………………. 14,616 LBS
Equipped With (subject to buyer verification):
Mazatrol Matrix Nexus 2 Control
Twin Table Option
Dual Chip Conveyors (Rear Exit)
Probe Ready
Auto Tool Length Measurement
