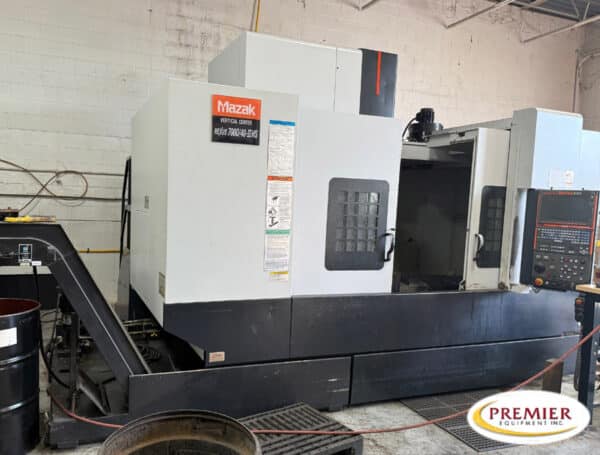

Mazak Vertical Center Nexus 700D/40-II HS / VCN700DHS / VCN-700DHS
CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Size……………………… 68.5” x 27.6″
X-Axis Stroke………………………… 60.2″
Y-Axis Stroke………………………… 27.6″
Z-Axis Stroke………………………… 25.6″
Spindle Face to Table Surface(Min/Max)….. 7.87″/33.46″
Maximum Table Weight Capacity………….. 4.410 LBS
Spindle Speed………………………… 18,000 RPM
Spindle Motor (15MIN/CONT.)……………. 50/35 HP
Spindle Taper ……………………….. #40
Rapid Traverse (X,Y,Z)………………… 1181 IPM
Number of Tools………………………. 30
Maximum Tool Diameter…………………. 3.25″
Maximum Tool Diameter (Adjacent Pockets)… 4.92″
Maximum Tool Length…………………… 13.78″
Maximum Tool Weight…………………… 17.6 LBS.
Tool Select Method……………………. RANDOM
Tool Change Time (Tool to Tool)………… 1.3 SEC
Power Supply (5 MIN/CONT)……………… 58.9/47.7 kVA
Air Supply (71-128psi)…………………. 10.59 cu-ft/min
Machine Height……………………….. 135.08″
Floor Space…………………….. 137.2″ X 161.4″
Machine Weight………………….. 24250 LBS
Equipped With (subject to buyer verification):
Mazatrol Matrix Nexus Control
Chip Conveyor
Thru Spindle Coolant
