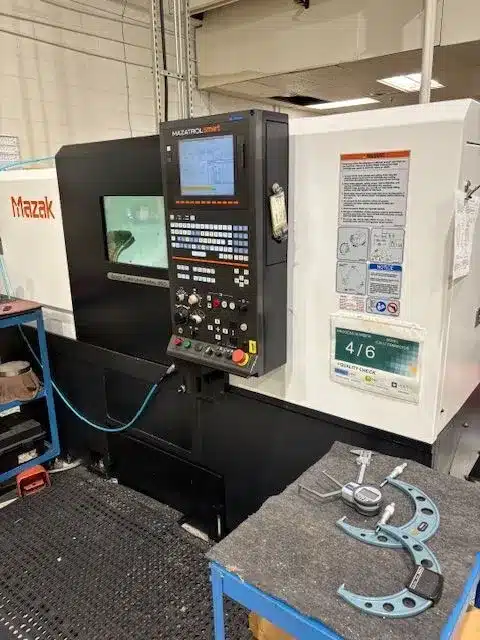

Mazak Quick Turn Universal 250 CNC Turning Center / QTU250
SPECIFICATIONS:
SWING OVER BED 27.4″
MACHINING LENGTH 18.83″
DISTANCE BETWEEN CENTERS 22.08″
CHUCK SIZE 1 8″
SPINDLE NOSE 1 A2 – 6
TURNING DIAMETER, SHAFT DIAMETER 16.25″
SPINDLE SPEEDS 1 4,500 RPM
SPINDLE HORSEPOWER 1 20 hp
X1 – AXIS TRAVEL 8.5″
Z1 – AXIS TRAVEL 25″
RAPID TRAVERSE RATE – X1 1,181 in/min.
RAPID TRAVERSE RATE – Z1 1,181 in/min.
TURRET CONFIGURATION 1 12
TAILSTOCK TAPER # 5
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 14.17″
# AXIS 2
BAR CAPACITY 2″
TAILSTOCK ‘Yes’
LIVE TOOLING ‘No’
SUB SPINDLE ‘No’
CONTROL CNC
WEIGHT 11,000
EQUIPPED WITH:
MAZATROL SMART CNC CONVERSATIONAL CONTROL
AUTOMATIC TOOL EYE
PROGRAMMABLE TAILSTOCK W/ CENTER
ALL AVAILABLE MANUALS
AVAILABLE TOOL HOLDERS
KITAGAWA 8″ 4 – JAW HYDRAULIC CHUCK (25,000.00)
ALL TOOL BLOCK HOLDERS
EIA, SPIRAL, ROTATION, GEOMETRIC
THREAD, POLAR COORDINATE INPUT
EIA 3D COMP, COMPARISON STOP, G54.1
VARIABLE 600 SETS
PITCH ERROR COMP.
CHIP CONVEYOR
