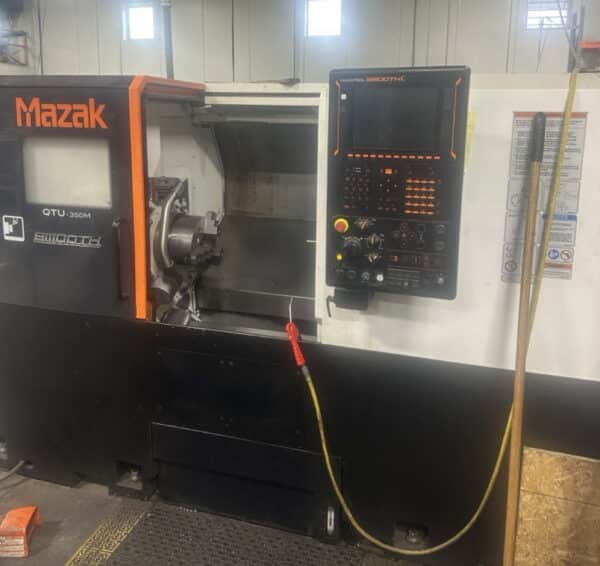

MAZAK QTU-350M CNC TURNING CENTER
Capacity:
Max Turning Diameter: 16.54″
Max Turning Length: 23.80″
Max Swing Over Bed: 29.50″
Max Bar Capacity: 3.0″
Travels:
X-Axis Travel: 10.75″
Z-Axis Travel: 26.38″
W-Axis Travel(Tailstock Travel): 25.50″
C-Axis Rotation: 360° (0.001° indexing)
Rapid Traverse X-Axis: 1181 IPM
Rapid Traverse Z-Axis: 1417 IPM
Spindle:
Spindle Nose: A2-8
Spindle Speed: 3,500 RPM
Spindle Motor Power: 25 HP
Turret:
Capacity: 12 Stations
Live Tool Speed: 4,500 RPM
Live Tool Motor Power: 7.5 HP
Tailstock:
Type: Programmable
Tailstock Body Travel: 25.50″
General:
Power Requirement: 40 KVA / 208V / 50/60 Hz / 3-Phase
Overall Dimensions: 130″ × 75″ × 75″ High Approx.
Machine Weight: 11,580 lbs
EQUIPPED WITH:
CONTROL CNC (Mazak SmoothC CNC Control)
10″ 3-Jaw Kitagawa Hydraulic Chuck
Servo-Controlled C-Axis on Spindle
12-Station Live Tool Turret
Automatic Tool Presetter
Programmable Tailstock
Chip Conveyor
Foot Switch
