Mazak Quick Turn 100SG – 2021

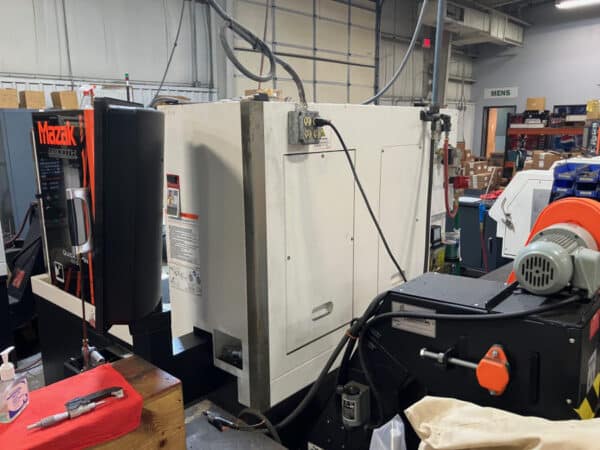

Mazak Quick Turn 100SG CNC Turning Center
Specifications (subject to buyer verification):
Capacity
Max. swing:  22.83”
Max. machining diameter:  11.0”
Max. machining length:  12.16”
Bar work capacity:  1.7”
Travel
X-axis:  7.7”
Z-axis:  13.2”
Main spindle
Spindle speed:  6000 RPM
Turret
Turret type:  12 position drum turret (bolt-on)
Number of tools:  12 tools
Feedrate
Rapid traverse rate : X & Z -axis:  1,181 IPM
Tailstock
Tailstock stroke:  12.795”
Tailstock center:  MT No.4 live center
Motors
Equipped With  (subject to buyer verification):
Mazatrol SmoothC Control
10.4” Color LCD
EIA/ISO Package
LAN Port in Electrical Cabinet
Relocation Device
NC Tailstock
12 St. Turret
Automatic Tool Eye
Auto Parts Catcher
Re-Threading Function
Thread Start Point Compensation
Chip Conveyor
6” Chuck
