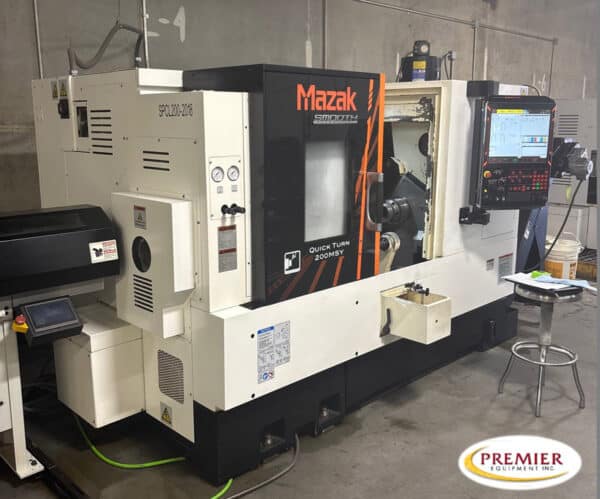

Mazak Quick Turn 200MSY x 20”/500 / QT200MSY / QT-200MSY
Mazak Quick Turn 200MSY
Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
Maximum Swing26.5”
Max Bar Work Capacity2.6”
Max Machining Diameter14.75”
Max Machining Length22.701”
Main Spindle Speed5000 RPM
Main Spindle Motor 30 Min35 HP
2nd Spindle Speed6000 RPM
2nd Spindle Motor10 HP
No. of Tool Stations12
Live Tooling Speed and Motor5000 RPM / 7.5 / 5 HP
X-Axis Travel9”
Y-Axis Travel4”
Z-Axis Travel22.6”
Equipped With (subject to buyer verification):
Mazatrol SmoothG Control
Chip Conveyor
ATS ML-580 Barfeed
