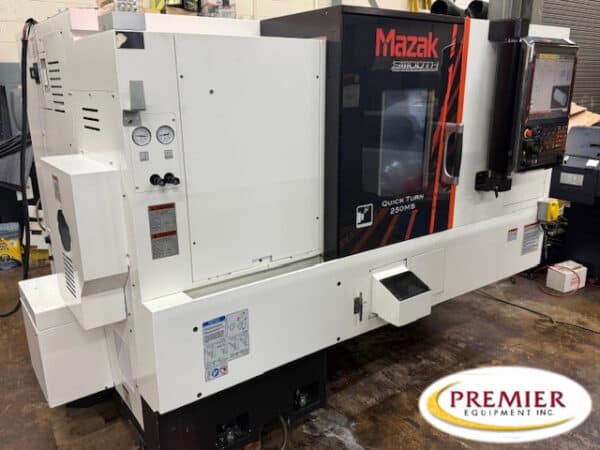

Mazak Quick Turn 250MS Multi-Axis Lathe / QT250MS / QTN250MS
Specifications
Main Spindle Chuck: 10″
Maximum Swing: 26.5″
Maximum Cutting Diameter: 14.75″
Maximum Machining Length: 21.28″
Main Spindle HP: 35 HP
Main Spindle RPM: 4000 RPM
Main Spindle Nose: A2-8
Main Spindle Bore: 3.58″
Number of Tool Stations: 12
Milling Spindle RPM: 6000 RPM
C Axis Positioning: 0.0001 deg
2nd Spindle Chuck: Collet
2nd Spindle Nose: A2-5
2nd Spindle Bore: 2.05″
2nd Spindle HP: 15 HP
2nd Spindle RPM: 6000 RPM
Equipped With:
Mazatrol Smooth G
High Power Coolant (213 PSI)
Synchronous Tapping
Automatic Tool Eye
Air Blast
Automatic Parts Catcher
Workpiece Conveyor
LNS Quick Load Servo 80-S2 Barfeed
Mayfran Clean Sweep Conveyor
