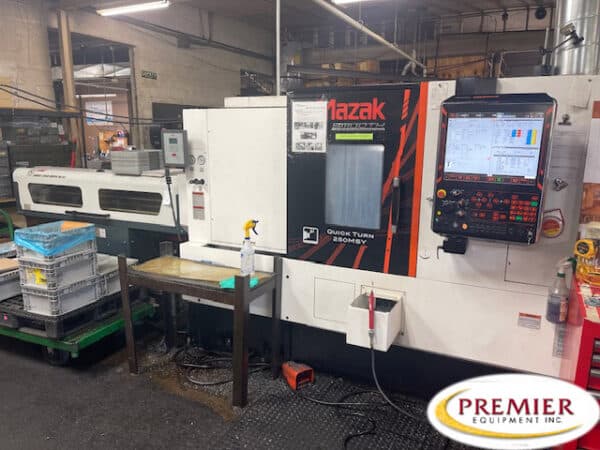

Mazak Quick Turn 250MSY Multi-Axis CNC Turning Center / QT250MSY
Specifications (subject to buyer verification):
Maximum Swing.………………………………………………. 26.5”
Standard Machining Diameter……………………………. 10.87”
Maximum Machining Diameter.…………………………. 14.75”
Maximum Machining Length …………………………….. 21.275” / 36.38”
Standard Bar Capacity………………..………………………. 3.00”
X-Axis Travel……………………………………………………….. 9.0”
Y-Axis Travel……………………………………………………….. 4.0”
Z-Axis Travel……………………………………………………….. 22.63” / 31.875”
Main Spindle
Maximum Speed…………………………………………………. 4000 RPM
Spindle Motor (30min rating)…………..………………… 35 HP
Spindle Bore………………………………………………………. 3.58”
Second Spindle
Spindle Speed…………………………………………………….. 6000 RPM
Spindle Motor…………………………………………………….. 15 HP
Number of Tools………………………………………………… 12
Tool Size (outside / inside)…………………………………. 1.0” / 1.5”
Turret Index Time (one/full)……………………………….. 0.2 sec/0.6 sec
Mill Spindle Motor………………………………………………. 10 HP
Mill Spindle Speed………………………………………………. 6,000 RPM
Machine Height ………………………..……….………………. 73.2”
Machine Width ……………………….………..………………. 73.2”
Machine Length ………………………………..………………. 111.4”
Machine Weight ……………………..………………….……… 11,464 lbs
Equipped With (subject to buyer verification):
Mazatrol SmoothG Control
High Power Coolant @ 118 PSI
Parts Catcher
Chip Conveyor
LNS Quick 6 Barfeed
