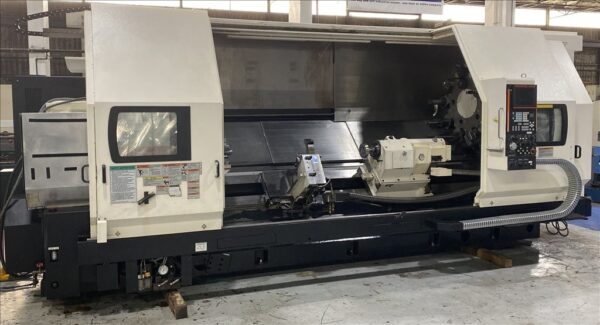

MAZAK SLANT TURN 50N CNC LATHE / SL50N
Catalogue Specifications
Maximum Swing: 31.7″
Maximum Cutting Diameter: 22.05″
Maximum Cutting Length: 118″
Spindle Speeds (Infinitely Variable): 2 – 1500 RPM
Spindle Nose: A2-15
Spindle Bore: 7.1″
Spindle Motor: 50 HP
X-Axis Travel: 22.64″
Z-Axis Travel: 118″
X-Axis Rapid Traverse: 472 IPM
Z-Axis Rapid Traverse: 551 IPM
Number of Tool Positions: 15 (10 O.D., 5 I.D.)
EQUIPPED WITH:
Programmable Tailstock
Mazatrol 640 T CNC Control
15-Position Turret
16″ SMW 3-Jaw Chuck
Coolant System (High Pressure)
Chip Conveyor
SMWSLU-4-ZS Powered Steady Rest 1.18″ – 9.64″ Cap
Automatic Tool Eye with clearance for 24″ Chuck
Renishaw Radio Probing
