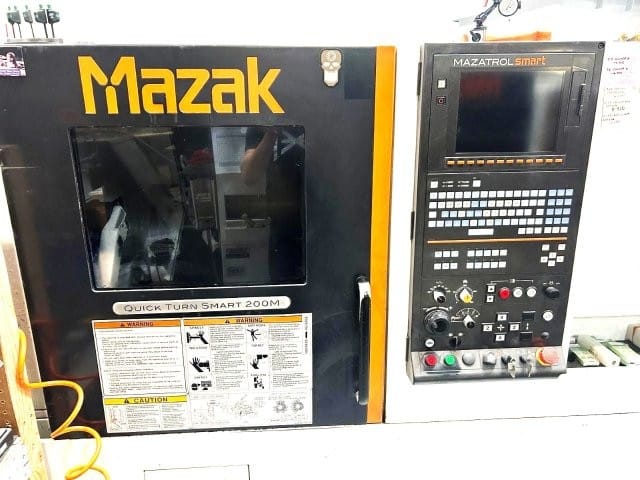

Mazak Quick Turn Smart 200M / QTS200M / QTS-200M
CNC Chucker Lathe with Milling
Mazak QT Smart 200M
MAXIMUM SWING …………………………………… 26″
SWING OVER CROSS SLIDE …………………………… 13.5″
MAXIMUM MACHINING DIAMETER ……………………….. 14.25″
MAXIMUM MACHINING LENGTH …………………………. 21.035″
BAR CAPACITY ……………………………………. 2.56″
X-AXIS TRAVEL …………………………………… 8.875″
Z-AXIS TRAVEL …………………………………… 23.75″
CHUCK SIZE ……………………………………… 8″
SPINDLE SPEED …………………………………… 5,000 RPM
SPINDLE NOSE ……………………………………. A2-6
SPINDLE BORE ……………………………………. 2.99″
TURRET TYPE BOLT-ON ……………………………… 12 STATIONS
TOOL SHANK HEIGHT ……………………………….. 1″BORING BAR SHANK
BORING BAR SHANK DIAMETER ………………………… 1.5″
TURRET INDEXING TIME …………………………….. 0.23 SEC
ROTARY TOOL SPINDLE SPEED ………………………… 4500 RPM
MILLING CAPACITY ………………………………… 3/4″
TAPPING ………………………………………… M20 X 2.5″
FEEDRATE RAPID TRAVERSE X/Z/C …………………….. 1181, 1299, 555 RPM
TAILSTOCK STROKE ………………………………… 22.125″
SPINDLE MOTOR …………………………………… 25 HP
ROTARY TOOL SPINDLE MOTOR ……………………….. 7.5 HP
POWER REQUIREMENT ……………………………….. 28.7 KVA
COOLANT TANK CAPACITY ……………………………. 71.3 GALLONS
MACHINE SIZE ………………………….. 103″ X 66″ X 71″ TALL
WEIGHT ……………………………….. 12,125 LBS
