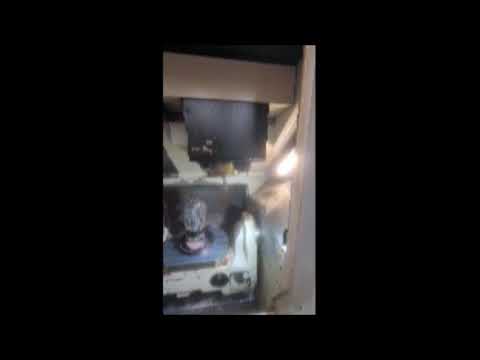

Mazak Variaxis 5005X-2 5-Axis CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Size…………………………. 19.69″ x 15.75″
Floor Space Required………………… 110″ x 116″ x 111”
Machine Weight……………………… 16,500 lbs.
TRAVELS
X-Axis Travels……………………… 20.08″
Y-Axis Travels……………………… 20.08″
Z-Axis Travels……………………… 18.11″
A-Axis Travels……………………… -120 Deg – +30 Deg (axial control)
C-Axis Travels……………………… +/- 360 Degree (axial control)
Distance Spindle Nose/Table Top………. 7.48″ ~ 25.59″
(Table Horizontal)
Distance from Spindle Nose to the Table Center 5.51” to 23.62”
(Table Vertical)
WORKPIECE SIZE
Maximum Table Load………………….. 661 lbs.
Maximum Workpiece Size….(L/W)……….. 19.5 x 15.95
Maximum Workpiece Height…………….. 15.95
SPINDLE
Spindle Nose……………………….. #40
Spindle Horsepower (Cont/30 Min)……… 30/20 HP
Spindle RPM………………………… 12,000 RPM
AUTOMATIC TOOL CHANGER
Magazine Capacity…………………… 40
Equipped With (subject to buyer verification):
