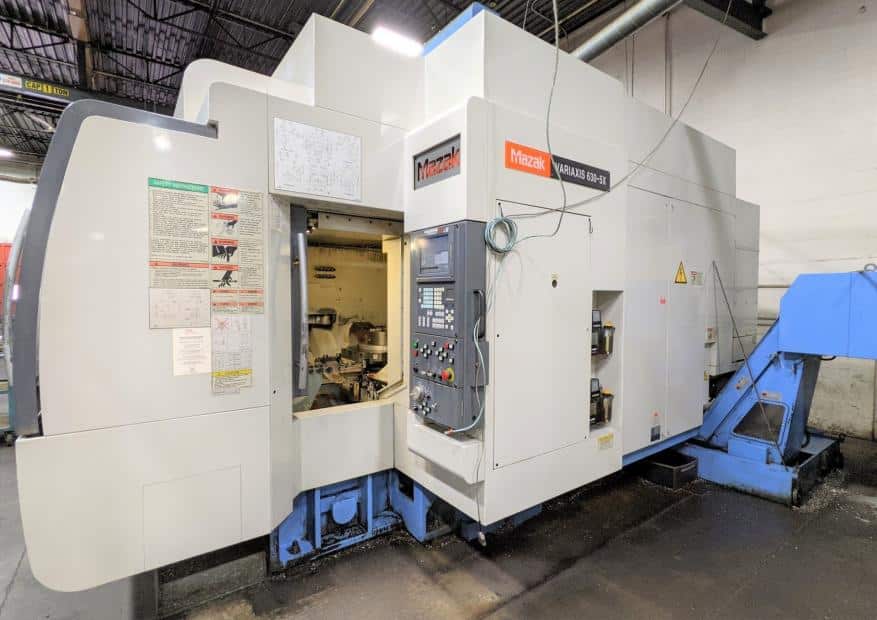

MAZAK VARIAXIS 630II 5X 2 APC CNC VERICAL MACHINING CENTER
Specs
Number Of Tables / Pallets 2
Table Size 24.80″ X 19.69″
Weight On Table 1102 LBS
Spindle Nose To Table 9.06″ ~ 29.13″
Main Spindle Speeds 12,000 RPM
Main Spindle Taper 40
Main Spindle Horse Power 30 HP
X – Axis Travel 24.8″
Y – Axis Travel 30.12″
Z – Axis Travel 20.08″
A – Axis Travel + 30 ~ – 120 DEGREES
C – Axis Travel Table Indexing 360 DEGREES
Rapid Traverse X, Y, Z 1969 IPM
Cutting Feed Rate 1969 IPM
Automatic Tool Changer 80 ATC
Tool Diameter 3.15″, 4.92″
Tool Length 14.17″
Tool Weight 17.6 LBS.
Machine Weight 30,100 LBS.
Equipped with
1000 PSI HIGH PRESSURE COOLANT CARDBUS I/F 2-SLOT
CHIP CONVEYOR RIGHT DISCHARGE CYLINDRICAL INTERPOLATION
EIA/ISO FUNCTION SIMULTANEOUS 5 AXES EIA/ISO INPUT OPTION
FILTRATION SYSTEM G00 SLOPE CONSTANT
INCH/METRIC CONVERSION LAN AND USB
MAXIMUM PROGRAM SIZE 8MB MAZATROL PC FUSION CNC 5X COLOR CONTROL
PREP FOR MMSB TYPE MP10 SHAPE COMPENSATION FOR ROTARY AXES
SYNCHRONIZED TAP TRANSFORMER
