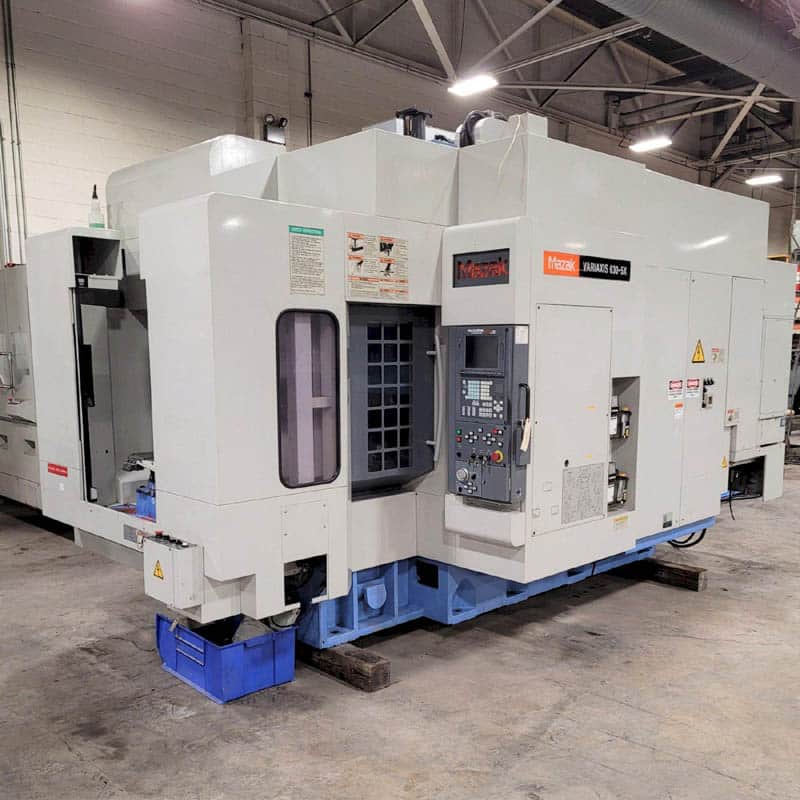

Mazak Variaxis 630-5X (2-Pallet) Dual Pallet 5-Axis Vertical Machining Center
Max. Swing: 28.74″ / 730 mm
Max. Machining Diameter: 28.74″ / 630 mm
Max. Work Length: 500 mm
Max. Machining Length: 19.69″ / 500 mm
Max. Work Mass: 500 kg
Max. Tool Length: 360 mm
Max. Tool Diameter: 80 mm
Max. Tool (Adjacent to Empty): 125 mm
Table Tilt (A-Axis): -120° to +30°
Table Size: 24.8” x 19.69” / 630 mm x 500 mm
Spindle RPM: 12,000 RPM
Spindle Taper: CAT40
Tool Magazine: 80 ATC
Motor Output: 22 kW / 30 HP
X-Axis Travel: 24.8” / 630 mm
Y-Axis Travel: 30.12” / 765 mm
Z-Axis Travel: 20.08” / 510 mm
Rapid Traverse Rate (X,Y,Z): 1,969 IPM / 5,000 mm/min
Rapid Traverse Rate (A,B): 18,000 deg/min
Approximate Weight: 38,000 lbs.
EQUIPPED WITH:
Mazak 640M5X CNC Controls. Built-in Tilt Rotary Table with Turning Capability in both Horizontal and Vertical orientations. Full 5-Axis Simultaneously Controlled Machining. 150 Degree Table Tilt-up. 360 Degree Table Rotation. (2) Drilled and Tapped Pallets. Minimal Thermal Distortion by Cooled Ball Screws, and Spindle Hydraulic Clamping Table. 80-Position ATC with Rear Magazine Control. Renishaw Tool Probe. Oil Chiller. High-Pressure Coolant and Mazak Superflow Filtration System. Chip Removal Chip Conveyor. Transformer. Large Quantity of Tool Holders and Leveling Pads.
