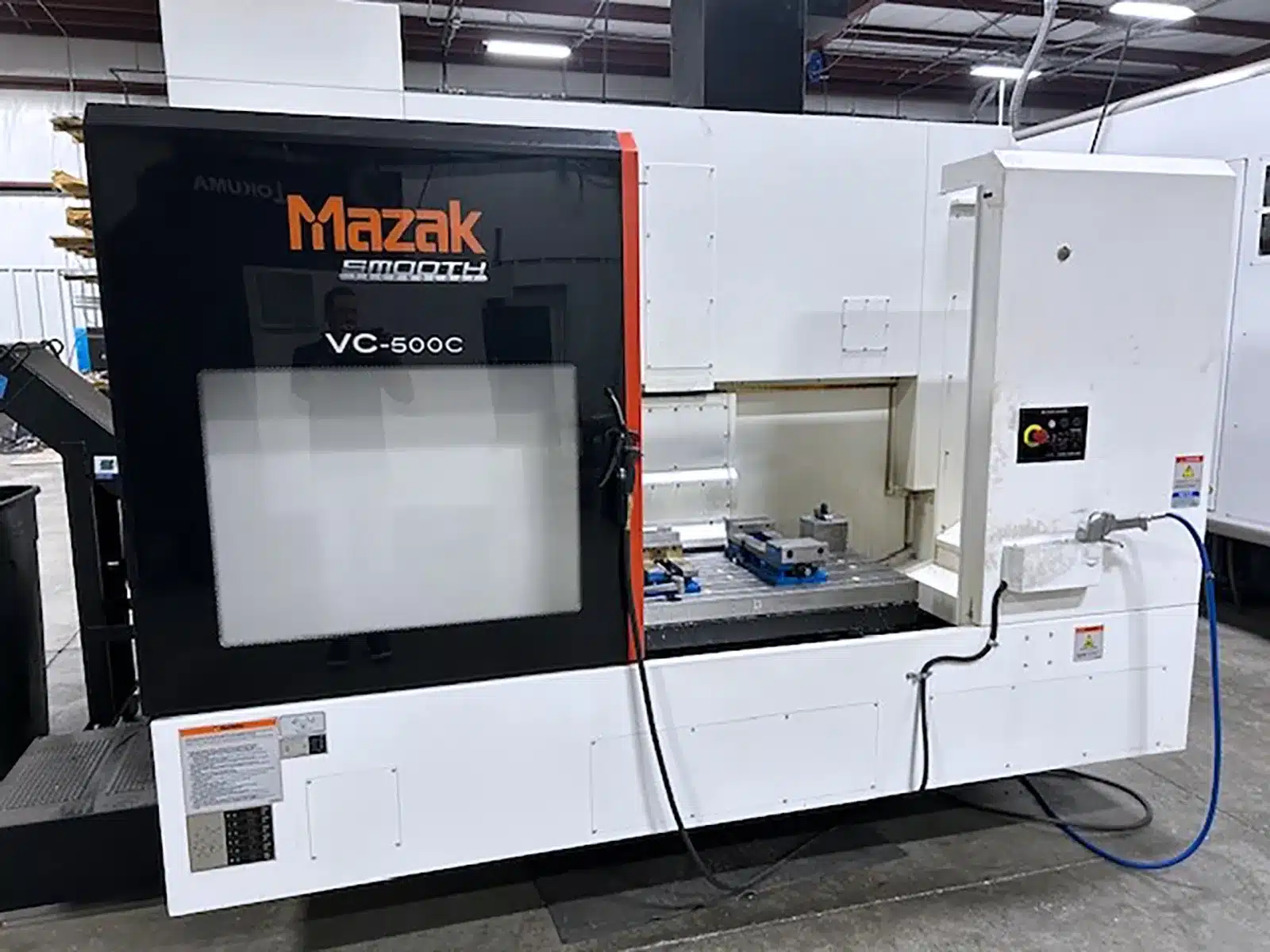

Mazak VC500C 2PC Vertical Machining Center
Specification
TABLE SIZE 41.33″ x 19.68″
X AXIS TRAVEL 39.37″
Y AXIS TRAVEL 19.88″
Z AXIS TRAVEL 20″
MAIN SPINDLE 15,000 RPM
NUMBER OF TOOL STATIONS 30
SPINDLE TAPER CAT 40
MAIN SPINDLE POWER 30 HP
MACHINE WEIGHT 24,200 lbs.
NO OF PALLETS 2
Option / equipped with
MAZATROL SMOOTHG CNC
2 Pallet Changer
Upgraded 15000 Spindle RPM
30 HP spindle motor
213 PSI Coolant Thru Spindle
1000 PSI Hydraulic Pump System
Renishaw OMP 60 Probe
Renishaw Tool Presetter
MT Connect System
19″ COLOR LCD (TOUCH SCREEN)
EIA/ISO PACKAGE
SMOOTH STANDARD SOFTWARE FOR MACHINING CENTER
Chip Conveyor with Coolant Tank
Absolute Encoder system
All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity.
Price: $
