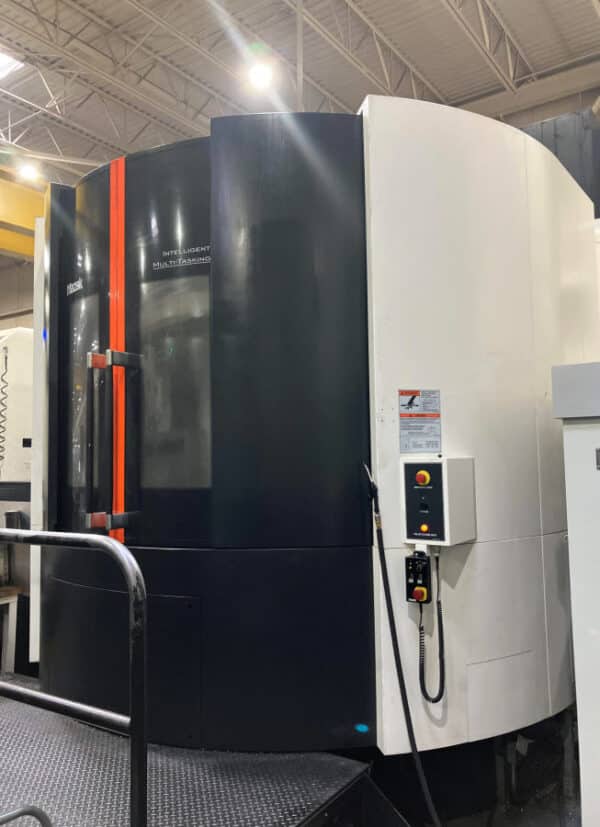

Mazak Vortex e1060-V/8
Turning-Machining Center
Axis Travel:
X – axis 73.82″
Y – axis 41.73″
Z – axis 52.95″
B – axis Full contouring 150 Degree (-30 Deg. to 120 Deg.)
C – Axis 360 Degree (.0001 Deg. Increment)
Pallets (2) 39.4″ x 39.4″
Work piece Dimensions 49.21″ X 49.21″
Weight Capacity 4784 pounds
Milling Spindle Speed 10,000 RPM / 2 Windings
Spindle Taper CAT 50
Horsepower 50 Int. / 40 Cont.
Turning spindle Speed 500 RPM
Horsepower 50 Int. / 40 Cont.
Tool Changer Capacity 120
Tool Diameter 5.31″ / 10.24″
Tool length 19.69″
Tool Weight 66 Pounds
Rapid Traverse X, Y, Z Axis 1653 IPM
B Axis 30 RPM
C Axis 18 RPM
Machine Weight 85,800 pounds
MAZAK VORTEX e1060 V/8 5-Axis CNC
Vertical/Horizontal/Milling/Turning Center
Equipped with:
Mazatrol Matrix 2 CNC conversational control w / 15″ display
1000 PSI high pressure coolant through spindle w / Mazak Superflow V8M
Manual pulse generator (Detachable)
Two pallet changer
Tool eye automatic
ConSep chip conveyor system
Coolant washdown at operator and pallet load stations
Heidenhein linear scales X, Y, Z
Spindle air blow
Power indexing at work load station
Renishaw NC4 laser tool measurement
Renishaw H/V OMP60 probe
Hydraulic pressure interlock
Auto power on/off/warm-up
8MB program storage
Prep for LAN and Modem
Mill spindle synchronous tapping
Background tool path check
Tool breakage detection
Adaptive feedrate control
Tool life monitoring
Renishaw advanced probe macros / Inspection plus
3D coordinate rotation G68.2
EIA simultaneous 5-axis
Tool tip point control 5-axis
Simultaneous 5-axis tool radius comp.
G00 slope constant
2D software shape continuous
Shape continuous rotary axis
Inch / Metric conversion
Cylindrical G07
Polar coordinate G12
Mazacc-3D high speed software package
High smoothing control
Additional EIA / ISO function
All available manuals
