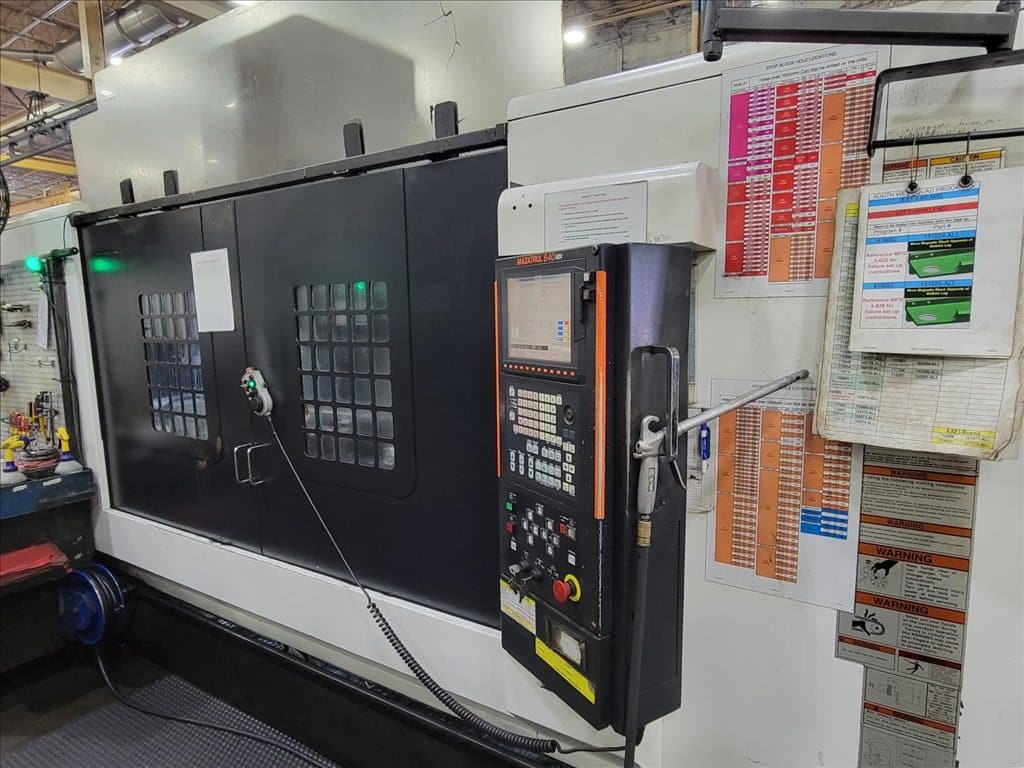

Mazak VTC250/50
CNC Vertical Machining Center
Catalogue Specifications
X-Axis Travel: 64.1″
Y-Axis Travel: 25.1″
Z-Axis Travel: 25.1″
Throat: 26″
Table Size: 67.5″ x 25.1″
Table Capacity: 2778 lb.
Spindle Nose to Table Top Distance (Min./Max.): 7.1″ – 32.2″
Spindle Nose: CAT 50
Spindle Speed: 6000 RPM
Rapid Traverse (X/Y/Z): 1181 IPM
Cutting Feed Rate: .04 IPM – 697.8 IPM
Tooling: 24-ATC
Tool Diameter (Min./Max.): 3.1″ – 4.3″
Max. Tool Weight: 17.8 lb.
Max. Tool Length: 13.7″
Motor: 30 HP
EQUIPPED WITH:
Mazatrol 640MN CNC Control
Spindle Thru Coolant
Mayfran Chip Conveyor
