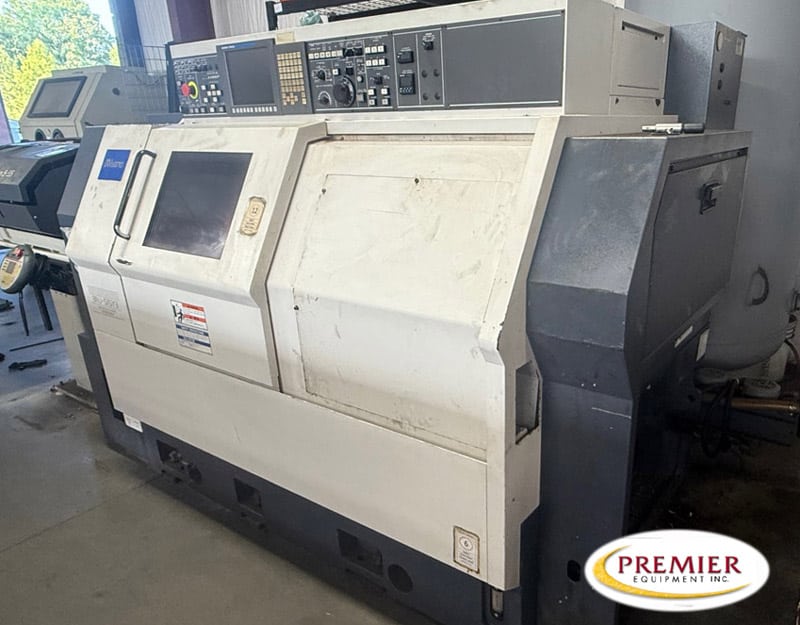

Miyano BNJ51SY3 7-Axis CNC Super Turning Center
Specifications (subject to buyer verification):
Max. Bar Capacity L-spindle 51mm (2” Dia.)
R-spindle 42mm (1.65” Dia.)
Type of Collet Chuck L&R-spindle Stationary
Standard Turning Length 100mm (3.93″)
Spindle
Spindle Nose L/R-spindle A2-6/Sp. Flat
Spindle Speed Range L-spindle 50 〜5,000 RPM
R-spindle 67 〜5,000 RPM
Spindle Motor (30min./Cont.) L-spindle 14.7/10 HP
R-Spindle 7.5 / 5 HP
R-SP Slide Stroke X2 70 mm
Z2 525 mm
Main Turret
Type of Turret Station 12 Station
Turret Indexing Time 0.25sec./1st.
Slide Stroke X1 165 mm
Z1 246 mm
Y1 +/- 40mm
Back-Working Turret
Type of Turret Station 6 Station
Turret Indexing Time 0.2sec./1st.
Revolving Tools (Main Turret / Option)
No. of Revolving Tools Station 12
Tool Speed Range 60 – 6000 RPM
Tool Motor 2.9 HP (2.5kw)
Machining Capacity Drill/Tap 13mm/M8xP1.25
Machine Dimensions
Machine Height 1,720mm (67.7”)
Floor Space 109.5” x 60.5”
Machine Weight 12,125 lbs
Equipped With (subject to buyer verification):
Fanuc 0i-TD Control ??
Y-Axis Turret
FMB Turbo 5-55 Magazine Bar Loader
Chip Conveyor
