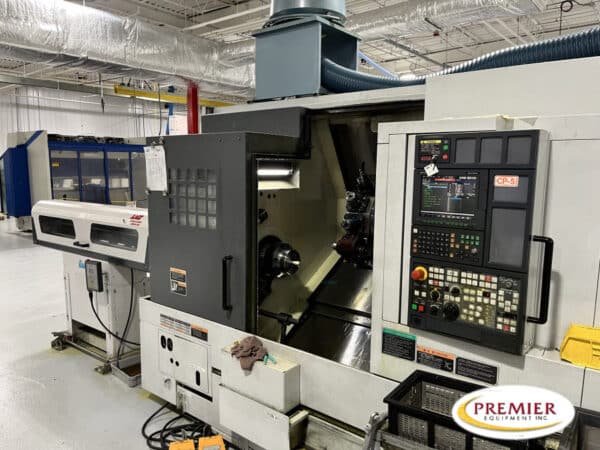

2009 MORI SEIKI NL2500SY/ 700 Multi-Axis Turning Center
SPECIFICATIONS:
Swing Over Bed: 36.4″
Swing Over Front Cover: 29.7″
Max. Turning Diameter: 14″
Max. Turning Length: 27.7″
Bar Work Capacity: 3.1″
Main Spindle Chuck Size: 10”
Sub Spindle Chuck Size 6”
X Axis Travel: 10.2″
Y Axis Travel: 3.9<+/-2.
Z-Axis Travel: 31.3″
Max. Spindle Speed, Main: 4,000 RPM
Max. Spindle Speed , Sub: 6,000 RPM
Main Spindle Nose: A2-8
Sub Spindle Nose: A2-5
Thru Spindle Hole Dia., Main: 3.6″
Thru Spindle Hole Dial, Sub: 1.7″
Number of Tool Stations: 12
Max. Rotary Tool Speed: 6,000 RPM
Main Spindle Drive Motor: 25/20 HP
Sub Spindle Drive Motor: 15/10 HP
Rotary Tool Drive Motor: 7.5/5 HP
Equipped With:
MSX-850 w/ MAPPS Control (Mitsubishi)
Parts Catcher
Main and Sub Spindle Pre Setter
Chip Tray
All Available Tooling and Manuals
