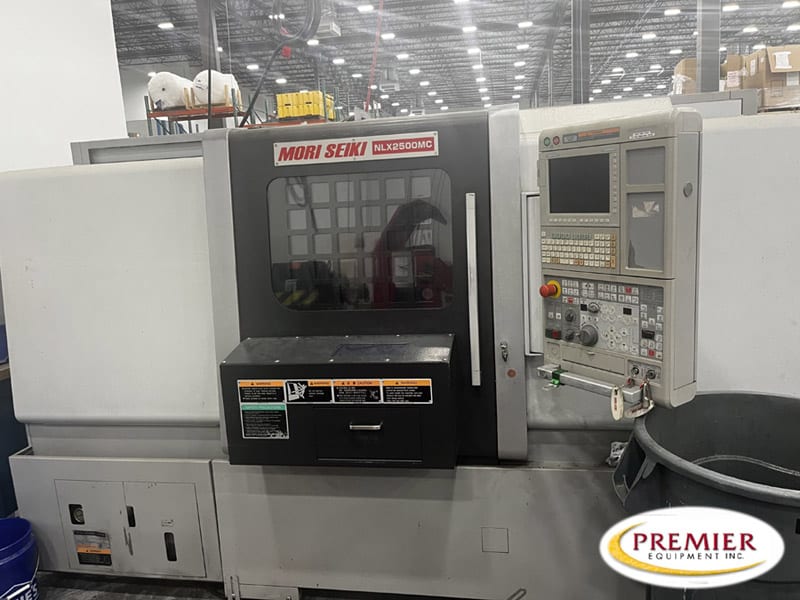

Mori Seiki NLX2500MC/700 Multi-Axis CNC Lathe
Specifications (subject to buyer verification):
Swing Over Bed 31” <Interference with Front Cover: 23”>
Swing Over Cross Slide 21.3”
Max Turning Diameter 14.4”
Standard Turning Diameter 10.6”
Max. Turning Length 27.7”
Bar Work Capacity 3.1”
X-Axis Travel 10.2”
Z-Axis Travel 31.3”
Max Spindle Speed 4000 RPM
Motor 25/20 HP
Spindle Nose A2-8
Through-Spindle Hole Diameter 3.6”
No. of Tool Stations 12
Max Rotary Tool Spindle Speed 6000 RPM
Rotary Motor 7.5/5HP
Rapid Traverse Rate XZB: 1181 IPM
Tailstock Travel 28.9”
Floor Space 156” x 82” x 75”
Weight 12,100 lbs est.
Equipped With (subject to buyer verification):
Mori Seiki M730BM Control
Automatic Tool Presetter
12 Position Turret
Belt Type Chip Conveyor
Parts Catcher
Fully programmable tailstock
10” 3-Jaw Hydraulic Chuck
All available static, live toolholders, spindle liners, and accessories
