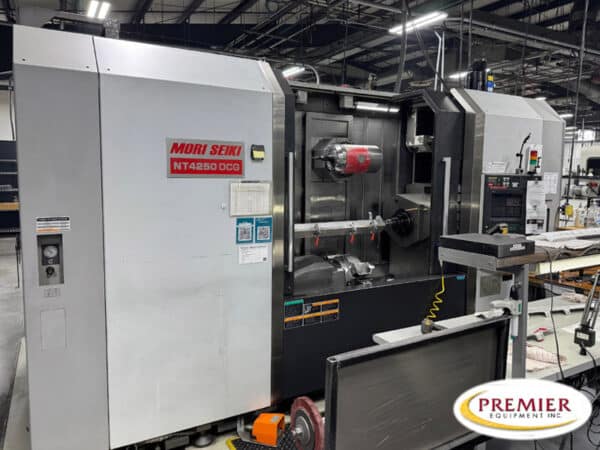

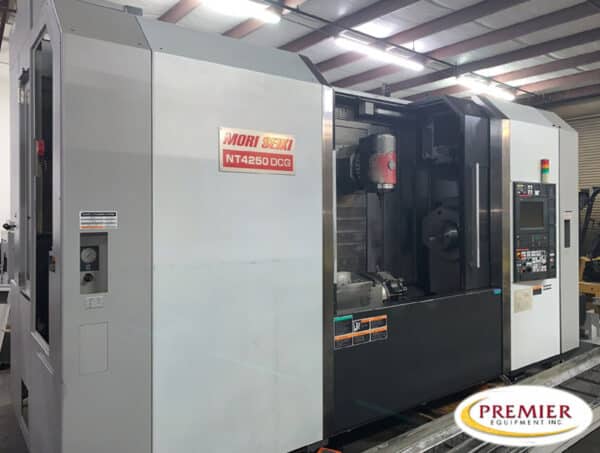

Mori Seiki NT-4250DCG /1500SZ CNC Multi-Axis Turning Center
Specifications (subject to buyer verification):
Capacity
Max Swing of Workpiece28.7”
Swing Over Cross Slide28.7” / 15.7” Turret 2
Max. Distance Between Centers73.3”
Max. Turning Diameter25.9” / Turret 2: 13.7”
Max Turning Length60.7”
Car Work Capacity3.1”
Travel
X-Axis Travel <tool spindle>29.5”
Y-Axis Travel <tool spindle>+/- 8.3”
Z-Axis Travel <tool spindle>61” + 3.9”
B-Axis Rotation Range <tool spindle>+/-120 Degree
X-Axis Travel <Turret 2>7.7”
Z-Axis Travel <Turret 2>60”
Spindle 1
Max. Spindle Speed4,000 RPM
No. of Spindle Speed Ranges2 <Winding Change-Over>
Type of Spindle NoseJIS A2-8
Through-Spindle Hole Diameter3.6”
Min. Spindle Indexing Increment0.0001 Degree
Spindle Torque <25%ED/10 Min/30 Min/cont>534 / 442.5 / 396.8 / 302.4 ft-lbf
Spindle 2
Max. Spindle Speed4,000 RPM
No. of Spindle Speed Ranges2 <Winding Change-Over>
Type of Spindle NoseJIS A2-8
Through-Spindle Hole Diameter3.6”
Min. Spindle Indexing Increment0.0001 Degree
Spindle Torque <25%ED/10 Min/30 Min/cont>534 / 442.5 / 396.8 / 302.4 ft-lbf
Tool Spindle (Turret 1)
No. of Tool Stations1
Max. Rotary Tool Spindle Speed6000 RPM
Equipped With (subject to buyer verification):
MORIC MSX-711 III Control
Sub Turret with Milling
Sub Spindle
Cooljet HPC
Capto C6
40 ATC
Chip Conveyor
Tool Presetter
Renishaw Probe
Royal Mist Collector
All Available Static and Live Tool Holders for Lower Turret
(2) 10” 3-Jaw Hydraulic Chucks
All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity.
Price: $
