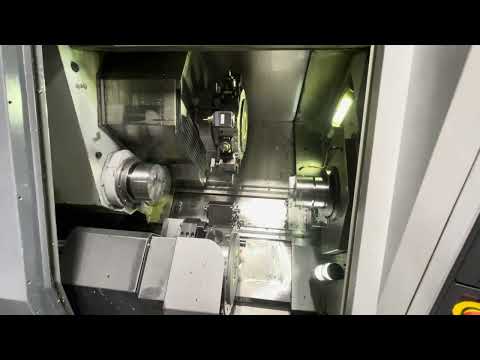

MORI SEIKI ZT1500YB CNC TWIN TURRET TWIN SPINDLE W/Y AXIS
SPECIFICATIONS:
Max Swing Of Workpiece 12.2″
Max. Distance Between Spindle Noses 39.4″
Max. Turning Diameter 7.5″
Max. Turning Length 9.3″
X-Axis Travel 5.5″/5.5″ a
Z-Axis Travel 27.6″/27.2″
Y-Axis Travel +/- 2.0″
C-Axis .001 Deg.
B-Axis Travel(Headstock No. 2) 30.5″
Bar Work Capacity NO. 1 / NO 2 2.6″/2.6″
Spindle nose NO 1 / NO 2 A2-6 / A2-6
Hole through spindle NO 1 / NO 2 2.9″ / 2.9″
Spindle speeds NO 1 / NO 2 5000 / 5000 RPM
Rapid Traverse Rate X & Z, Y / C, B 945/945/232/400 Min
945 IPM
Jog Feedrate 0-190 IPM
Upper / Lower Turret 16 each/ 16 total
Main Motor 33 HP
Sub Spindle Motor 33 HP
Rotary Tool Spindle Speed (turret) Upper 6,000 RPM
Rotary Tool Horse Power (turret) Lower 7.5 HP
Turret Indexing Time .2 Sec.
Machine Weight 14,450 LBS.
EQUIPPED WITH:
MSX-501 CONTROL
CHIP CONVEYOR
8” BIG BORE CHUCK ON MAIN
6” CHUCK ON SUB
TOOL SETTER
PARTS CATCHER & PARTS CONVEYOR
(2) COOLBLSTER 1000 PSI PUMPS
FULL SET OF SPINDLE LINERS
All Available Tooling
All Available Tooling
ALL AVAILABLE MANUALS
