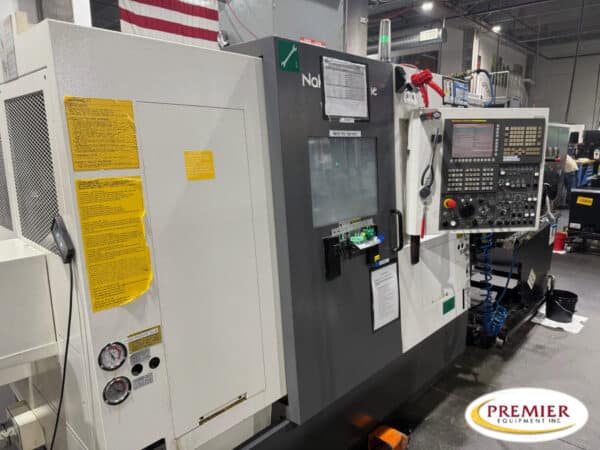

Nakamura-Tome WT100MMY CNC Multi-Axis Turning Center with Milling and Y-Axis
Specifications (subject to buyer verification):
MAX. TURNING DIAMETER/MAX. TURNING LENGTH: 7.5″/19.8″
DISTANCE BETWEEN SPINDLE NOSE: max. 29″ /min. 8.27″
BAR CAPACITY: 1.65″
CHUCK SIZE: 6″ (165mm)
AXIS TRAVEL
SLIDE TRAVEL X1/X2: 5″ / 5″
SLIDE TRAVEL Z1/Z2/B: 20″ / 20″ / 20.7″
SLIDE TRAVEL Y UPPER TURRET: ± 1.2″
LEFT SPINDLE RIGHT SPINDLE
SPINDLE SPEED: 6,000 RPM
LEFT SPINDLE MOTOR (MAX/CONT.) : 15/10hp 55.6/28.5 ft.lbs
RIGHT SPINDLE MOTOR(MAX/CONT.) : 15/10hp 55.6/28.5 ft.lbs
UPPER TURRET
NUMBER OF TURRETS: 1
SPINDLE SPEED: 6,000 RPM
TYPE OF TURRET HEAD/NUMBER OF INDEX POSITIONS: Dodecagonal/24
DRIVEN MOTOR POWER AND TORQUE (MAX/CONT.) : 10/3hp 11.8/5.9 ft.lbs
ROTARY SYSTEM/NUMBER OF DRIVEN-TOOL STATIONS: Individual rotation/12
LOWER TURRET
NUMBER OF TURRETS: 1
SPINDLE SPEED: 6,000 RPM
TYPE OF TURRET HEAD/NUMBER OF INDEX POSITIONS: Dodecagonal/24
DRIVEN MOTOR POWER AND TORQUE (MAX/CONT.) : 10/3hp 11.8/5.9 ft.lbs
ROTARY SYSTEM/NUMBER OF DRIVEN-TOOL STATIONS: Individual rotation/12
GENERAL
FLOOR SPACE （L×W×H）: 90.5″ × 63.8″ × 76.4″
MACHINE WEIGHT : 12,700 lbs
Equipped With (subject to buyer verification):
Fanuc Series 31i-Model A Control
Chip Conveyor
Parts Catcher
Tool Presetter
MP Systems 1,000 PSI Coolant Pumps
All Available Live and Static Holders
Barfeed Interface Only
Collet Type Chucks for Main Spindle
3-Jaw Hydraulic Chuck for Sub Spindle
