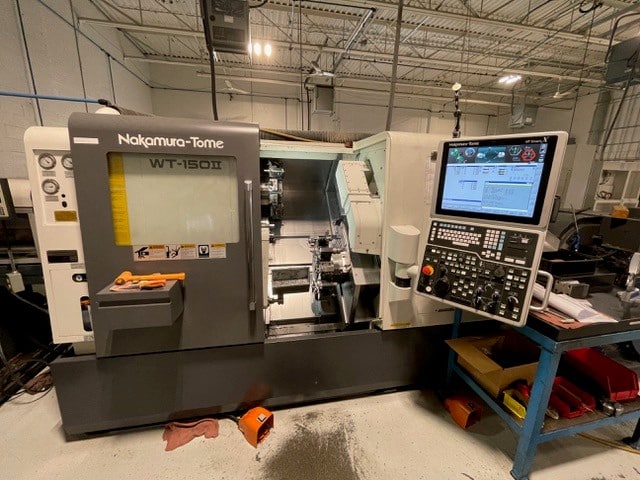

Nakamura WT150 with bar feeder
General Specifications:
Max Turning Diameter…………… 7.48″
Max Turning Length…………….. 15.74″
Distance between spindle noses….. Max. 29.52″ / min. 7.87″
Max Bar Capacity………………. 2.56″
Hole through draw tube L/R……… 2.6″ / 2.05″
Spindle bore L/R………………. 3.15″ / 2.48″
Chuck Size……………………. 6″
C axis rotation – both spindles…. 0.001 degree
Spindle Speed, Left……………. 4,500 RPM
Spindle Speed, Right…………… 5,000 RPM
Left Spindle Motor…………….. 15/11 kW / 20HP
Right Spindle Motor……………. 11/7.5 kW / 15 HP
Upper Turret
Tool positions………………… 24
Live tool positions……………. 12
Upper Axes Travel (X/Z)………… 5.61″/18.30″
Upper Y-Axis Travel……………. +/-35 … +/- 1.38″
Driven Motor Power…………….. 5.5 kW / 7.37 HP
Driven Tool Speed……………… 6,000 RPM
Lower Turret
Tool positions………………… 24
Live tool positions……………. 12
Lower Axes Travel (X/Z)………… 6.59″/18.3″
Driven Motor Power…………….. 5.5 kW / 7.37 HP
Driven Tool Speed……………… 6,000 RPM
Requirements:
Floor space required L x W……… 142″ x 78″
Machine approx. weight…………. 19,600 lbs
Power requirement……………… 67.2 kVA
– 2 Radial and 2 Axial live tool holders
– Barfeeder
– 1000 psi Chip blaster unit
– Super efficient mist collector on top
– Detachable tool presetter.
