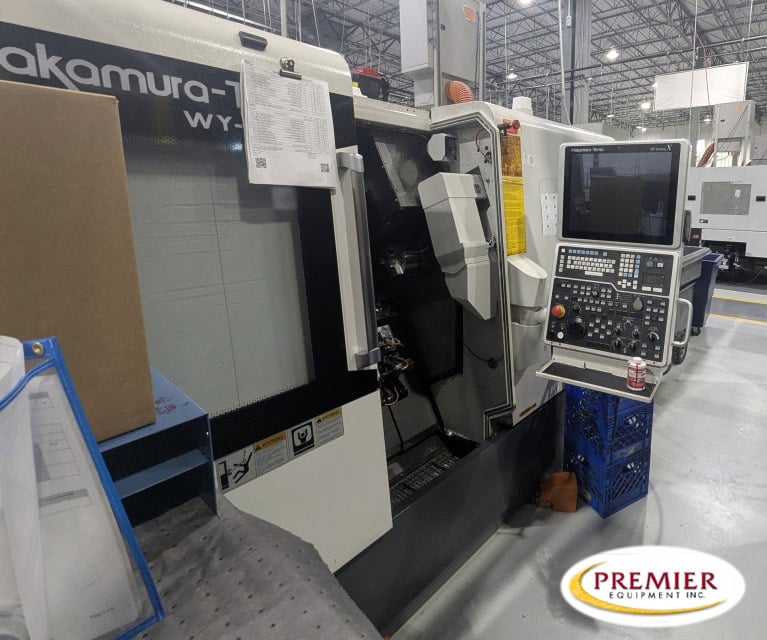

Nakamura WY150 Multi-Axis CNC Lathe, Sub Spindle, Upper & Lower Turrets Live, Y-Axis Both
Specifications (subject to buyer verification):
Main Spindle – Left
Motor 20/15 HP
Speed Range 45 – 4500 RPM
Spindle Nose A2-6
Hole Through Spindle 3.15”
Hole Through Draw Tube 2.5”
Max Torque 103.4 lbs-ft
Capacity Left Spindle
Bar Capacity 2.5”
Chuck Size 8”
Max Turning Diameter 8.85”
Standard Turning Diameter 5.91”
Max Turning Length 22.24”
Sub Spindle – Right spindle
Motor 20 HP
Speed 45 – 5000 RPM
Spnidle Nose A2-5
Hole Through Spindle Right 2.6”
Hole Through Draw Tube Right 2.0”
Capacity – Right
Bar Capacity 2”
Chuck Size 6”
Max Turn Diameter 8.85”
Standard Turn Diameter 5.91”
Max Turn Length 22.24”
Turrets
Turret Head Type Upper/Lower 12 / 12 Bolt on
No. of Tool Station Upper/Lower 12 / 12 Stations
Machine Dimensions
Size 152” x 85” x 85”
Weight 23,153 lbs
X Axis Travel 6.31 in
X2 Travel 6.31 in
Z Axis Travel 22.25 in
Z2 Travel 22.25 in
Y Axis Travel 3.54″
Y2 Lower Turret Travel 2.75″
B Axis Travel (Sub Spindle) 25.63 in
C1/C2 Axis Index 0.001°
Live Tooling yes
Live Tooling Speed 6,000 rpm
Live Tooling Motor 7.5 hp
Y Axis (Yes / No) yes
Parts Catcher G for Sub Spindle (Auto Gantry Type)
Capacity2.5”
Max Length6”
Max Weight6.6 lbs
Equipped With (subject to buyer verification):
Fanuc 31i-B CNC Control
Luck Bei – Nakamura’s Color Graphics Conversation Progr4mming 3D-Smart Pro
4500 RPM Spindle, 20 HP (Left)
5000 RPM Spindle, 20 HP (Right)
2.5” Bar Capacity (Left)
2.0” Bar Capacity (Right)
12 Station Bolt-on Upper and Lower Turret
7.3 / 5 HP Milling All Stations
Full “C” Axis Milling L&R
Y-Axis for Upper Turet +/- 1.77” (3.54” Total)
Y-Axis for Lower Turet +/- 1.37” (2.75” Total)
Luck Bei – Nakamura’s Color Graphics Conversation Programming 3D-Smart Pro
NT Navigator
NT Nurse System
Manual Tool Setter
Parts Catcher – Type G
Rigid Tapping – Left and Right Spindles – Milling turrets
Work Navigator
Helical Interpolation
Coolant Thru Spindle; Additional Rotary Union
Chip Conveyor
ChipBlaster GV2-80 2 Port 1500 PSI
LNS Quick Load Servo 80 S2 Bar Loader
Mist Collector
