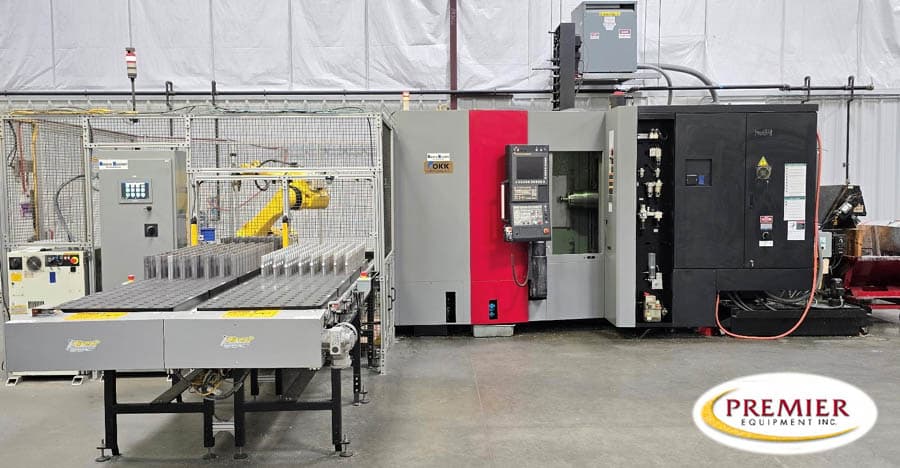

OKK HMC-400 CNC Horizontal Machining Center
Specifications (subject to buyer verification):
No. of Pallets: (2)
Pallet Size: 15.7″ x 15.7″
X-Axis Travel: 22.05″
Y-Axis Travel: 22.05″
Z-Axis Travel: 27.17″
Table Top To Spindle Centerline: 3.15-25.20″
Table Center To Spindle Nose: 1.97-29.13″
Pallet Indexing: .001 Deg. Rotation
Spindle Speed: 15,000 RPM
Spindle Motor: 50 HP
Spindle Taper: CAT40 Big Plus
No. of ATC Stations: 60 ATC
Rapid Traverse Rate: 2480 IPM
Equipped With (subject to buyer verification):
Fanuc Series 31iB CNC Control
Rear Discharge Lift Up Chip Conveyor for Aluminum
Built-in 4th Axis Rotary Table
15,000 RPM, CAT40, Big Plus
60 ATC
1000 PSI Coolant Thru the Spindle
FA-J919 Work Coordinate System, Additional 300 Sets
Tool Breakage Det. In the Mag
Fanuc CS Contouring Control for Broaching
Fanuc CS Conttouring Control for Broaching
Cutom Macro B, 82 Variable
Memory Increase to 4,199 ft
Programmable Mirror Image
Registerable Programs, Increase to 1000 Sets
Run Hour and Parts Counter Display
Tool Life Management (256 sets)
Tool Offsets Increase to 200 Sets Total
Work Coor4dinate System Additional 300 Sets
Constant Hydraulic Fixt. Coupling (6 Port/pallet)
Automatic Cell:
7 Pallet Shuttle System
Fanuc 710iB Robot
Single Exchange with 2 Grippers
Schunk 2 Jaw Gripper Actuators
Actuators are Self Centralizing
Open and Closed Sensors
Pneumatic Valve Package built in Robot Base
