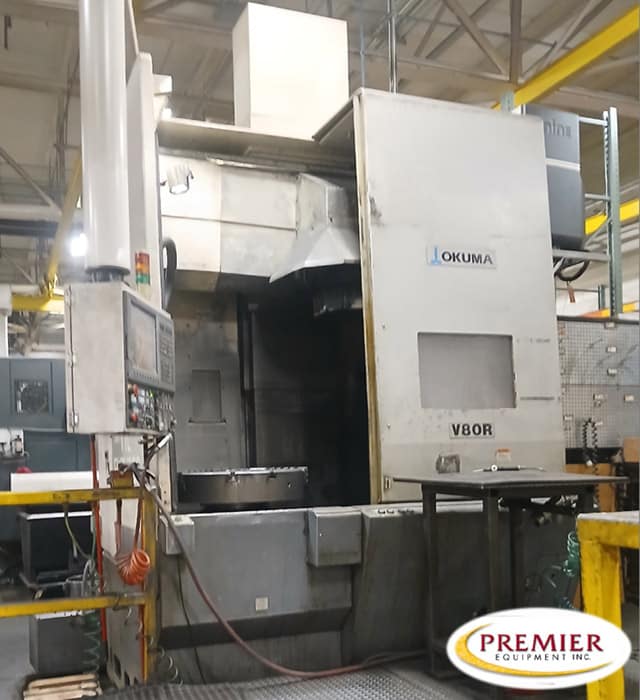

Okuma V80R-1SP CNC VTL
Specifications (subject to buyer verification):
Swing: 39.37”
Max Turning Diameter: 32”
Work Loading Mass: 1763 lbs
Max Turning Length / Height: 33”
Spindle Nose Shape: A2-11
Spindle Front Bearing Dia.: 7.87”
Spindle Speed: 10 to 180
12 to 530
15 to 340
20 to 1000
Turret Type: 12
X-Axis Travel: 18.5”
Z-Axis Travel: 33”
Rapid Traverse: 944 IPM
Spindle Motor: 60/50 HP
Required Floor Space: 108” x 177” x 160”
Equipped With (subject to buyer verification):
OSP-P200L
High Pressure Collant 15KG/CM2
Touch Setter QTS Manual/Auto
Robot/LoaderI/F Type D
Spindle Motor Upgrade 45/37KW Transmission
Consep Conveyor 2000 V80R
31.49” SMW-Autoblok 800mm Chuck 77122180
