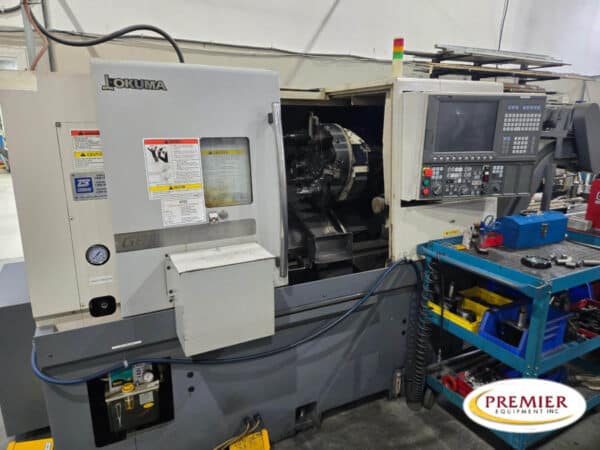

Okuma Genos L300M Multi-Axis CNC Lathe
Specifications:
Swing Over Bed20.47”
Swing Over Saddle6.69”
Max. Turning Diameter11.81”
Mach Length17.7”
X Axis Travel9.05”
Z Axis Travel20.47”
Rapid Traverse Rated 787 / 984 IPM
Spindle Speed25 ~ 3000 RPM
Spindle NoseA2 – 8
Spindle Bore / Bar Capacity3.15″/ 2.6”
Number of Tools12 Position Turret
Main Motor (30 Min / Cont)15HP / 10HP
Milling4500 RPM
Machine Dimensions120” x 74” x 73”
Machine Weight11,800 lbs
Equipped With:
OSP Control
Chip Conveyor
Parts Catcher
Tailstock
Milling
