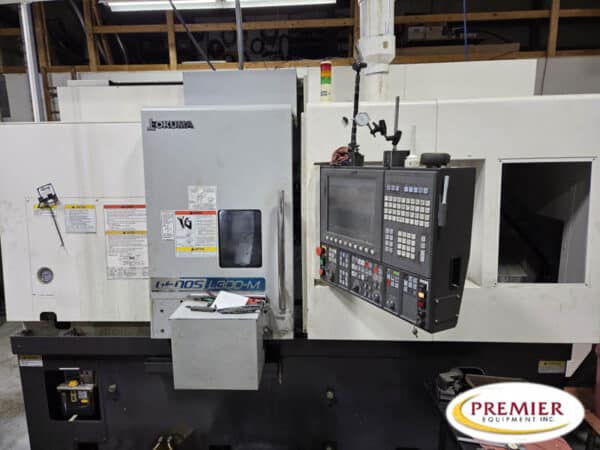

2014 Okuma Genos L300-MYW Multi-Axis CNC Turning Center
This 2014 Okuma Genos L300-MYW is the best machine for multitasking machining. It can turn, mill, and work on the Y-axis at the same time, and it has a sub-spindle for complete part processing in one setup. This machine is great for small to medium-sized production runs where cutting down on cycle time is very important. It has a maximum turning diameter of 11.81 inches and a maximum machining length of 17.7 inches.
Specifications (subject to buyer verification):
- Swing Over Bed20.47”
- Swing Over Saddle6.69”
- Max. Turning Diameter11.81”
- Max Mach Length17.7”
- X Axis Travel9.25”
- Z Axis Travel17.72”
- Y Axis Travel3.94” (+1.97” – 1.97”)
- W Axis20.47”
- C Axis360 Deg (0.001 Deg Increments)
- Rapid Traverse Rated 787 / 984 IPM
- Spindle Speed25 ~ 3000 RPM
- Main Motor (30 Min / Cont)20HP / 15HP
- Spindle NoseA2 – 8
- Spindle Bore / Bar Capacity3.15″/ 2.6”
- Number of Tools12 Position Turret
- Sub Spindle Speed / Motor133 – 6000 RPM/ 10 / 7.5 HP
- Milling4500 RPM / 5 HP
- Machine Dimensions129” x 85” x 87”
- Machine Weight13,700 lbs
Equipped With (subject to buyer verification):
- OSP P300L-R Control
- Tool Presetter
- Parts Catcher
- Chip Conveyor
- Y-Axis
- Sub-Spindle
