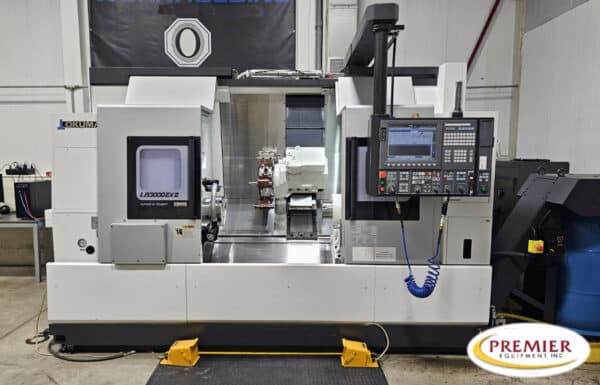

Okuma LB3000EXII-MYW x 800 Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
Swing Over Bed22.83”
Swing Over Saddle18.5”
Distance Between Centers31.5”
Max Machining Diameter13.39”
X Axis10.24”
Z Axis33.00”
Y Axis4.53” (+2.76” / -1.77”)
Spindle NoseA2-6
Thru Hole3.1”
Bar Capacity2.6”
Spindle Speed5000 RPM
Main Spindle Motor30 HP
Sub Spindle 50 – 6000 RPM
Sub Spindle Bore2.44”
Sub Spindle Tube ID1.69”
Sub Spindle Motor15 HP 15 min / 10 HP cont.
NO. of Turret Positions12
Live Tool Spindle Speeds45 – 6,000 RPM
Milling Motor9.6 HP (25 min) / 5.5 HP (Cont)
Rapid Feedrate X / Y / Z984 *IPM / 492 IPM / 1181 IPM
Floor Space 151” x 81” x 96”
Weight 15,070
Equipped With (subject to buyer verification):
OSP-P300LA
Manual touch setter
Dual spindles (10″ Main | 6″ Sub with Kitagawa Chucks Included)
LNS Turbo Conveyor included
Robot ready (Was set up for demos with a Fanuc unit, robot not included)
