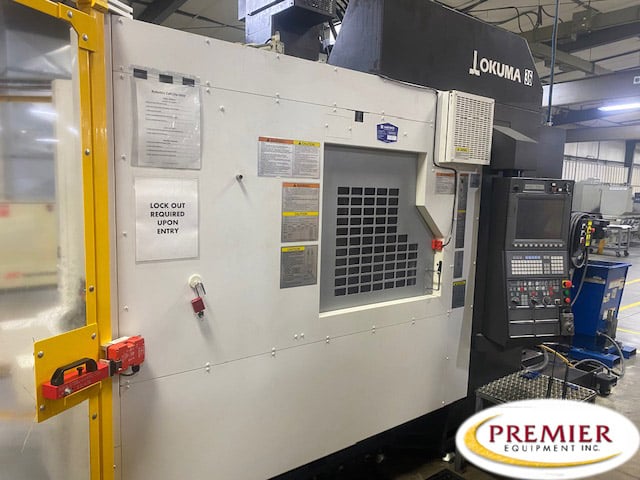

Okuma MF46VA (2-Pallet) CNC Vertical Machining Center
Specifications (subject to buyer verification):
TRAVEL
X‐axis travel (ram saddle right/left) 30.00 in
Y‐axis travel (table traverse F/R) 18.11 in (plus 100 mm APC travel)
Z‐axis travel (spindle up/down) 18.11 in
Spindle nose to table uppersurface ‐ (tapped pallet) 7.09 ‐ 25.02 in.
PALLET
Table Pallet size 29.92 x 18.11 in.
Pallet top surface to floor height ‐ USA std ‐ tapped 38.19
Pallet load capacity ‐ Tapped hole – USA std. (tapped) 880 lb
SPINDLE
Spindle speed range – 35,000 RPM
Spindle Taper – HSK-F63
Max Output – 20 HP
Max Torque – 4.09 N.m
APC
Pallet change system
USA Standard 2 pallet, rotary
APC Motor ‐ OSP Servo Motor 2.7 hp
Pallet Change Time 7 seconds
ATC & MAGAZINE INCH METRIC
Tool magazine capacity ‐ 48 ATC
FEED RATE INCH METRIC
Rapid traverse rate: X,Y 1,575 ipm
Rapid traverse rate: Z 1,259 ipm
Max Cutting feedrate/X‐/Y‐/Z‐axis 1,259 ipm
Jog Feed Rate 0.04 – 1,259 ipm
AXIS DRIVE
OTHER
Machine Height 116 in 2,946 mm
Floor Space 95 x 129 in 2,406 x 3,270 mm
Machine weight (with 20 station magazine ) 21,340 lb. 9,700 k
Equipped With (subject to buyer verification):
OSP-P300MA CNC Control
Pallet Changer
Tool unclamp package
2-pallet rotary type APC
Pallet size: 460mm x 760mm
Pallet type: Inch tap
High cross +200mm
48-Tool ATC
Spindle/Spindle head cooling system (Oil controller)
Coolant supply system
ATC air blower
Chip air blower, nozzle type
Prep for through spindle coolant 7.0MPa (1000psi)
Through air blow during spindle rotation
35,000 RPM Spindle
