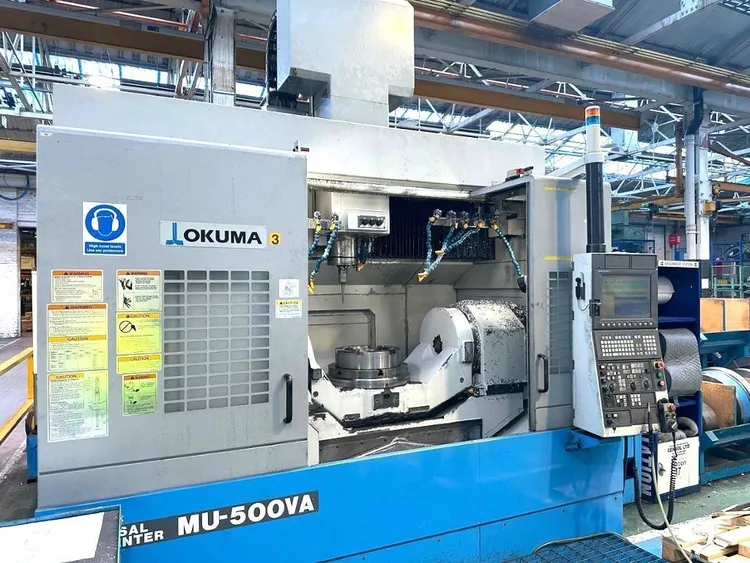

5-Axis CNC Mill
SPECIFICATIONS:
Travels
X-axis (saddle left/right) – 49.21”
Y-axis (pallet front/back) – 25.98”
Z-axis (spindle up/down) – 21.25”
A-axis – +20~-110 deg.
C-axis – 360 deg.
Table surface to spindle nose – 5 – 26.26”
Table size – ø19.68”
Max work size – ø 28.7”730 x h19.68”
Floor to table top – 1073mm
Max load capacity – 500kg
Spindle speed – 15,000rpm
Turning specification – C-axis table 1000rpm
No. of spindle ranges – Infinitely variable
Tapered bore – 7/24 taper No.40
Rapid traverse – X-Y: 40m/min, Z:32m/min
Rapid traverse (A-C) – 18,000 deg/min
Cutting feed rate – X-Y-Z: 32m/min
Motors Spindle (10min/cont) – 11/7.5kW
ATC Tool shank type – MAS BT40 Big plus
Retention knob type – MAS 2
Tool capacity – 32
EQUIPPED WITH:
OKUMA OSP P200M-H CNC CONTROL
20″ ROTARY PLATEN
4TH AND 5TH AXIS BUILT IN TRUNION
32 POSITION AUTOMATIC TOOL CHANGER
COOLANT THRU SPINDLE
TOOL LENGTH MEASURING
