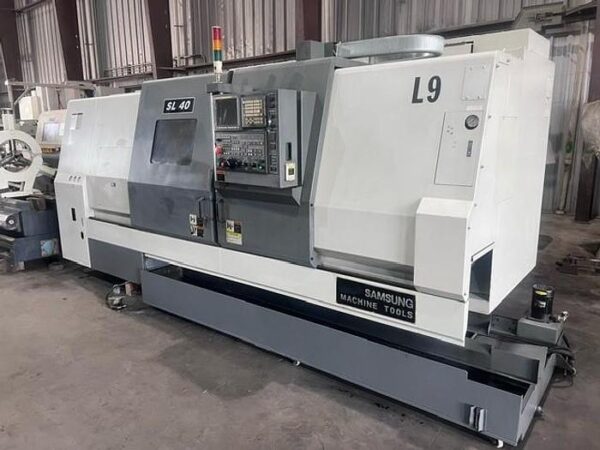

Samsung SL40/1500 CNC Lathe
Machine Control Fanuc 0i-TD
Chuck size 18″ 3 Jaw Hydraulic Chuck
Maximum Swing over Bed 26.8″
Maximum Machining Diameter 19.7″
Maximum Machining Length 60.2″
Maximum Bar Capacity 4.6″
X-Axis Travel 11″
Z-Axis Travel 63.19″
Spindle Nose / Spindle Bore A2-11″ / 5.2″
Spindle Speed 1,800 RPM
Spindle Motor 30 HP
Number of Turret Positions 10 Station Block Turret
Rapid Traverse Rates 472 IPM / 591 IPM
Machine Dimensions 197″ x 75″
Machine Weight 20,500 lbs.
Description
18″ 3 Jaw Hydraulic Chuck
Chip Conveyor
Tailstock- Hydraulic with Programmable Body & Quill
Tool Presetter
Manual Guide i for Conversational Capability
Complete Coolant System with Tank & Pump
Card Interface
USB Port Interface
RS 232 Port Interface
2 Speed Geared Head
Boxed Way
3 Color Machine Status Condition Lights
Heavy Boxed Ways and Slant Bed
All Available Static Tooling
All Available Manuals
