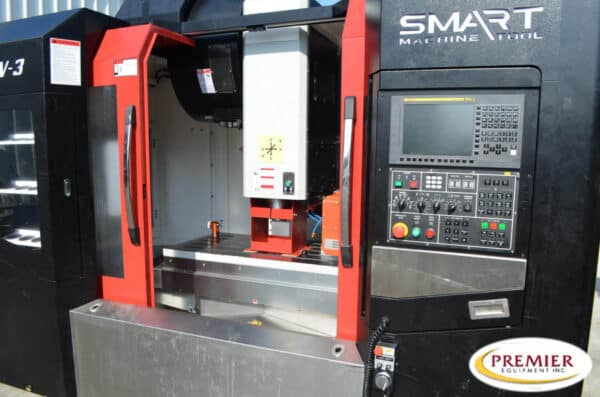

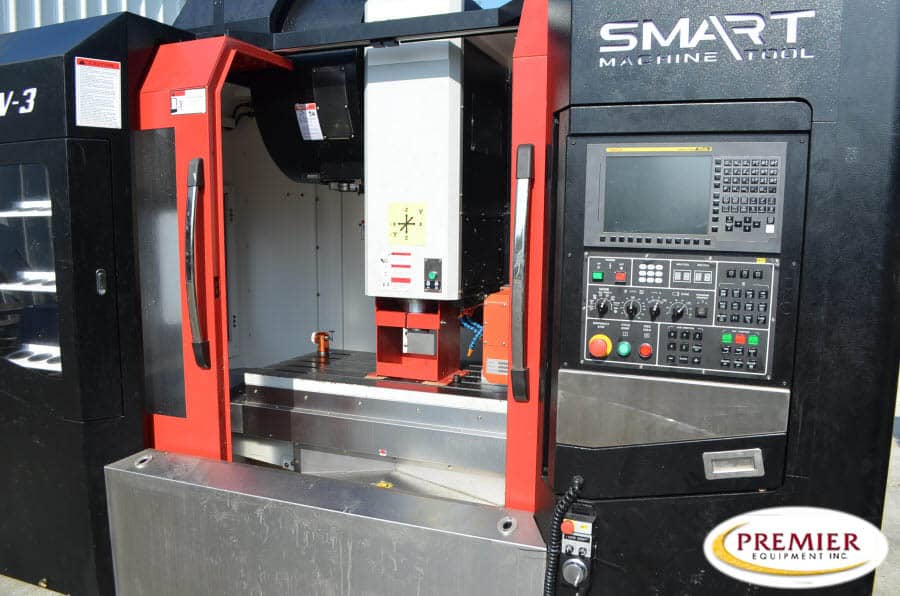

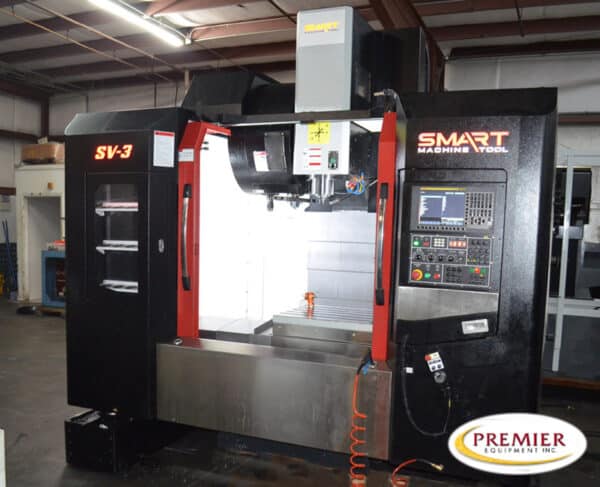

Smart Machine Tool SV-3 with Rotary Table – **2022

YouTube video
**2022 Smart Machine Tool SV3 CNC Mill
CNC Vertical Machining Center
Specifications (subject to buyer verification):
TABLE SIZE:  49.21” x 23.62”
Table Load Capacity:  2,205 lbs
X TRAVEL:  43.31”
Y TRAVEL:  24.62”
Z TRAVEL:  23.62”
Distance from Table Top to Spindle Nose:  5.91” – 29.53”
Distance from Colu8mn to Spindle Center:  25.59”
SPINDLE TAPER:  CAT40 (BIG PLUS)
SPINDLE SPEED:  10,000 RPM
SPINDLE HP:  20/25 HP
Spindle Torque:  94 ft-lbs (30 min)
Rapids (XYZ):  1417 IPM
Cutting Feerate:  394 IPM
MAGAZINE CAPACITY:  30
Floor Space (L x W x H) :  156” x 93” (Including Chip Conveyor)
Equipped With  (subject to buyer verification):
Fanuc system 0i-MF CNC control
10,000 RPM Spindle
30 Tool Double Arm ATC
Full Enclosed Splash Guard
Coolant Bed Flush
Rigid Tapping
Big Plus Spindle
Manual Guide i
Lift Up Conveyor
Renishaw Receiver and GUI Software
CTS Prep
4 Axis Prep
Renishaw Probe and Tool Setter
High Speed Machining, 200 look ahead
Smart Model CNC-250R Rotary Table
290 PSI Coolant Thru Spindle
**Purchased and Installed New in 2022
