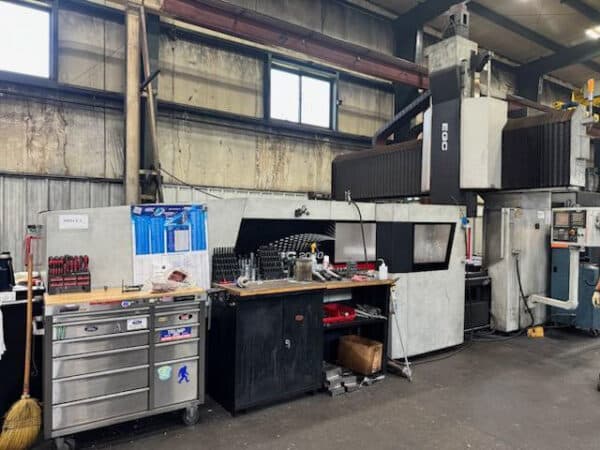

SMTCL EGC 2040 Machining Centers, Gantry (incld. Bridge & Double Column)
Number of Axes: 3
CNC Control: yes
Type of CNC Control: Fanuc Oi-MD
Table Size: 78″ x 157″
Max Table Load: 30800 Lbs
Effective Width Between Colums: 110″
X: 157 inches
Y: 78 inches
Z: 39.03 inches
Max Distance Spindle To Table Top: 9.8″ – 49.21
RPM: 6000
Number of Speed Ranges: 2
Taper: 50 Taper
# ATC: 40
Power: 40 horsepower
Dimensions: 452″ L x 244″ W x 267″ HT.
Machine Height: 267″
Weight: 101200 pounds
Control: Fanuc Oi-MD
40 Station Automatic Toolchanger
Full Chip Enclosure
Coolant System
Manuals
