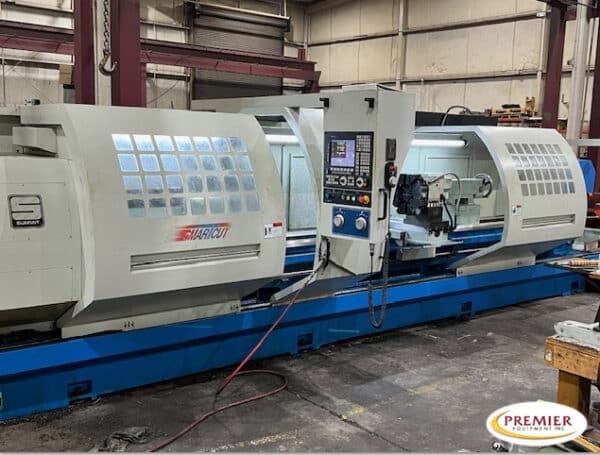

Summit SmartCut 30-9 x 200” M Series II
Combination Lathe
Specifications (subject to buyer verification):
Capacities
Swing Over Bed: 30”
Swing Over Cross Slide: 19.6”
Headstock
Spindle Speed (3 Ranges): 4 – 600 RPM (3 Ranges)
Spindle Bore: 9”
Spindle Nose: A2-15
Carriage
Cross Slide Travel: 16”
Longitudinal Travel (Z Axis) : 189”
Feed Rate: X: 196 IPM / Z: 196 IPM
Tailstock
Travel of Spindle Barrel: 9”
Diameter of Spindle Barrel: 4.13”
Taper of Spidle Barrel: MT#5
Bed
Width of Bed: 18.1”
Motor
Spindle Motor: 20HP
Shipping Data
Length x Width x Height: 280” x 72” x 90”
Weight: 14,820 lbs
Equipped With (subject to buyer verification):
Fagor 8055TC CNC Control
RS-232C / USB / Ethernet
Basic Operations: DRO Mode, Jog Mode, Axis Position, Feed rate & Spindle Control, Tool Selection, Home Search,
Constant Surface Speed, Semi-Auto Operations
Hardened and Precision Ground Bedways
Full CNC Operation
Combination Manual/CNC Operation
Auto Timed Metered Lube System
Front and Rear 26” Steel Body 4 Jaw Chucks
Steady Rest w/Rollers (2” – 14.9”)
Follow Rest
Coolant System
Rear Spindle Flange
Fixed Rear Chuck Guard
Remote Manual Pulse Generator
Extra Capacity Steady Rest (11.8” – 20.8”)
8 Position Hydraulic Turret
Chip Conveyor
Hydraulic Tailstock
Thread Repair
