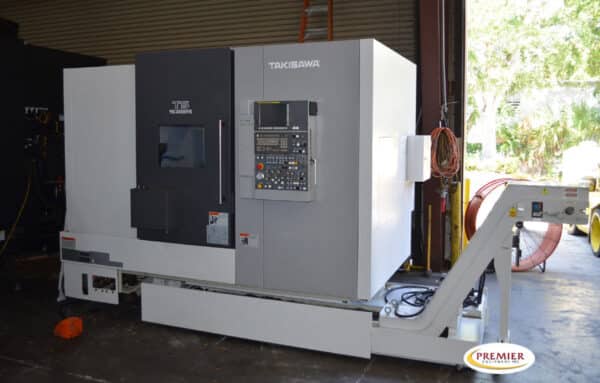

Takisawa TS4000YS Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
Max. Swing: 23.62″
Standard Turning Diameter: 11.02”
Max Turning Diameter: 14.57″
Max Turning Length: 29.53″
Bar Capacity: 3.23″
X-axis Travel: 10.51″
Z-Axis Travel: 33.07″
Y-axis Travel: -1.97” – +2.76”
A-Axis Travel: 30.71”
Left Spindle
Spindle Speed: 4200 RPM
Spindle Nose: A2-8
Through-Hole Diameter: 3.7”
Right Spindle
Spindle Speed: 6000 RPM
Spindle Nose: F140
Through-Hole Diameter: 2.09”
Turret Stations: 12
No. of Rotary Turret Stations: 12
Rotary Tool Spindle Speed: 6000 RPM
Rapid Traverse Rate: X,Z,A: 1181 IPM / Y: 393 IPM
Spindle Motor (30 min / cont): 29 / 20 HP
Right Spindle Motor (30 min / cont): 14.7 / 10 HP
Milling Spindle Motor (25% / cont): 10 / 4.9 HP
Required Floor Space: 118.11” x 85” x 90.55”
Machine Weight: 14,740 lbs
Equipped With (subject to buyer verification):
FANUC SERIES 32i-B control
10” chuck on main
6” chuck on sub-spindle
C-axis and live tooling
Y-axis
3.2” bar capacity
Renishaw tool setters on BOTH spindles
Parts catcher
Chip conveyer
All Available Live and Static Holders
Installed early 2023
Less than 400 cutting hours
